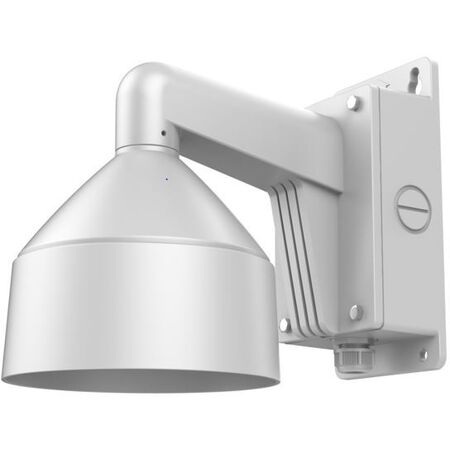

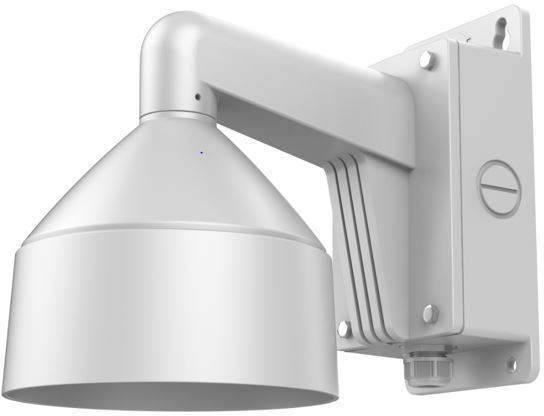

Wall Mount Bracket with Junction Box DS-1273ZJ-DM26-B Hikvision
Hikvision wall mount bracket with junction box features an integrated wall bracket and cable junction. Ideal for CCTV installs with compatible cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-1273ZJ-DM26-B, Dome Camera Wall Mount, CCTV Wall Bracket with Junction Box
Technical Specifications
- Product Type: Wall mount with junction box for dome cameras
- Material: Aluminium alloy
- Finish: Hikvision white with spray surface treatment
- Maximum Load: 4.5 kg
- Installation Surface: Flat wall required
- Waterproofing: Waterproof design; waterproof rubber required for outdoor applications
- Wall Capacity: Wall must support at least three times the combined camera and bracket weight
- Cable Management: Integrated cable hole and junction box for concealed camera wiring
- Dimensions (H x L x W): 184.9mm x 314.5mm x 260mm
- Weight: 2.05 kg
Key Features
- Integrated wall bracket and junction box in one assembly
- Designed for compatible Hikvision outdoor dome cameras
- Aluminium alloy construction with protective surface treatment
- Integrated cable routing improves installation neatness
- Waterproof design for suitable outdoor installations
- Maximum supported load of 4.5 kg
Applications
- Wall mounting compatible Hikvision dome cameras
- Outdoor CCTV and video surveillance installations
- Commercial, industrial and residential security camera systems
- Installations requiring concealed cable entry and junction protection
Environmental Benefits
- Aluminium alloy is highly recyclable at end of service life
- Durable metal construction can extend product service life and reduce replacement waste
- Integrated bracket and junction box can reduce the need for separate mounting components
Warranty Information
Warranty is subject to the applicable Hikvision sales and purchase agreement. Hikvision’s published RMA policy states that unlisted products and accessories are covered according to the relevant agreement or official product documentation.
Available Now
Available through Hikvision and authorised Australian security equipment distributors; confirm current stock and regional availability before ordering.
