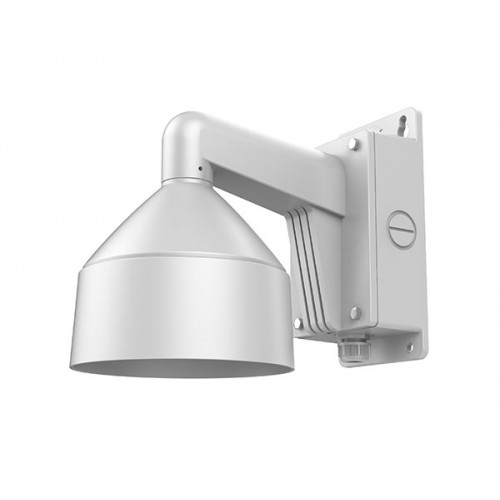

Wall Mount Bracket with Junction Box DS-1273ZJ-DM30-B Hikvision
Hikvision wall mount bracket with junction box features an integrated junction box. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: CCTV Wall Mount Bracket, Dome Camera Wall Bracket, Camera Mount with Integrated Junction Box
Technical Specifications
- Product Type: Wall mounting bracket for dome cameras
- Material: Aluminium alloy with surface spray treatment
- Colour: Hikvision white
- Junction Box: Integrated junction box for cable management
- Protection: Waterproof design; waterproof rubber required for outdoor installation
- Maximum Load Capacity: 3 kg
- Installation Surface: Flat wall required
- Wall Strength Requirement: Wall must support more than three times the combined camera and mount weight
- Dimensions: Diameter 209 mm × height 243 mm × depth 326 mm
- Weight: 2.5 kg
- Dimensions (H x L x W): 243mm x 326mm x 209mm
- Weight: 2.5 kg
Key Features
- Integrated junction box for protected cable storage and routing
- Designed for compatible Hikvision dome and PanoVu camera installations
- Aluminium alloy construction with sprayed surface treatment
- Waterproof design for suitable outdoor CCTV applications
- Cap design assists cable passage and installation
- Supports camera loads up to 3 kg when correctly installed
Professional Installation Requirements
- Install on a suitable flat wall using fixings appropriate to the substrate. The wall should support more than three times the combined weight of the camera and mount. Outdoor installations require waterproof rubber sealing. Installation should be completed by a competent CCTV installer, with any electrical or structured cabling work carried out in accordance with applicable licensing requirements.
Applications
- Wall mounting compatible Hikvision dome cameras
- Outdoor and indoor CCTV surveillance installations
- Commercial security camera systems
- Industrial and perimeter surveillance systems
- Installations requiring integrated cable management at the camera mount
Standards & Compliance
- AS/NZS 62676.1.1:2020 — applicable to video surveillance systems used for security applications; no separate Australian bracket certification was identified.
Environmental Benefits
- Aluminium alloy construction is recyclable at end of service life
- Durable metal construction can support extended service life and reduce replacement waste
- Integrated cable protection helps reduce damage to connected cabling and associated maintenance waste
Warranty Information
A 1-year warranty is listed by Hikvision distributors for this accessory category; confirm the applicable terms with the authorised Australian supplier. Hikvision's published 5-year programme applies only to specified premium product lines, not this bracket accessory. ([riel.hu](https://www.riel.hu/en/products/hikvision/ds-1273zj-dm30-b?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian CCTV, security and electrical distributors, subject to distributor stock.
