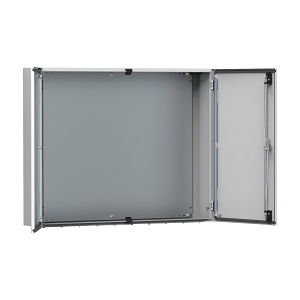

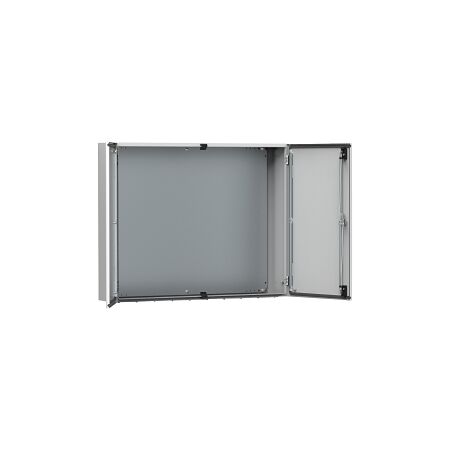

Wall Mount Electrical Enclosure | IP55 Rated | Double Door | Grey by NHP
Wall mount electrical enclosure with IP55 rating and double door design—ideal for industrial and commercial applications. Built for durability with mild steel and powder coating, offering high load capacity and easy access.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: nVent HOFFMAN MAD Enclosure Wall Mount Mild Steel IP55 H600 x W800 x D300mm Double Door
Brand: NHP
SKU: MAD0608030R5
Alternatively Known As: ['Wall Mount Electrical Enclosure', 'Double Door Steel Enclosure', 'IP55 Electrical Cabinet', 'NHP Wall Mounted Enclosure', 'nVent HOFFMAN Steel Enclosure']
Technical Specifications
- Material: Mild steel
- Surface finishing: Powder coating
- Material thickness: 1.5 mm
- Colour: Grey (RAL 7035)
- Degree of protection: IP55 (EN 60529)
- NEMA rating: 12
- Enclosure load capacity: 387 kg
- Door load capacity: 40 kg
- Impact strength: IK10
- Type of lock: DIN 1/4 turn
- Lock diameter: 3 mm
- Lock material: Zamac
- Gland plates included: Yes
- Mounting plate: Included and depth adjustable
- Number of doors: 2
- Number of locks: 1
- Suitable for wall mounting: Yes
- Dimensions (H x L x W): 600mm x 300mm x 800mm
- Weight: 31 kg
Key Features
- Constructed from durable mild steel with powder coating for corrosion resistance
- IP55 rated for protection against dust and water jets
- Double door design for easy access
- High enclosure load capacity of 387 kg
- Impact strength rated at IK10
- Adjustable mounting plate depth
- DIN 1/4 turn lock with Zamac material
- Includes gland plates and mounting plate
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian standards and optimal safety.
Applications
- Industrial control panels
- Electrical distribution boards
- Automation systems
- Data and communication equipment housing
- General wall-mounted electrical enclosure applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Powder-coated finish reduces environmental impact compared to traditional painting methods
- Long-lasting protection reduces need for frequent replacements
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for industrial, commercial, and automation applications requiring robust wall-mounted electrical enclosures.
