Wall Mount Enclosure IP66 | Mild Steel | Adjustable Mounting Plate by NHP

BRAND: NHP
SKU: NLS0303021
$165.50 List price: $219.70
+
Wall mount enclosure with IP66 rating and adjustable mounting plate—ideal for industrial and commercial applications. Built for durability with mild steel and powder coating, offering protection against dust and water ingress.

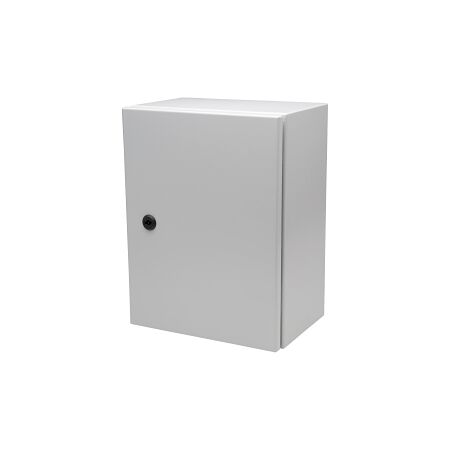

Product Name/Title: NHP NLINE Enclosure Wall Mount Mild Steel IP66 H300 x W300 x D210mm

Brand: NHP

SKU: NLS0303021

Alternatively Known As: NLINE Wall Mount Enclosure, Mild Steel IP66 Enclosure

Technical Specifications
  • Material: Mild steel
  • Surface finishing: Powder coating
  • Enclosure load capacity: 163 kg
  • Door load capacity: 28.5 kg
  • Material thickness: 1.4 mm
  • Degree of protection: IP66
  • Impact strength: IK10
  • Number of doors: 1
  • Number of locks: 1
  • Gland plates included: Yes
  • With mounting plate: Yes
  • Mounting plate depth adjustable: Yes
  • Dimensions (H x L x W): 300mm x 210mm x 300mm
  • Weight: 6.5 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Constructed from durable mild steel with powder coating for enhanced durability.
  • Adjustable mounting plate for flexible installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for housing electrical components and equipment.
  • Commercial: Ideal for outdoor installations requiring protection from dust and water.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP NLINE Enclosure Wall Mount Mild Steel IP66 is available now for immediate purchase, ideal for industrial and commercial applications.

NLS0303021-AU-Enclosure-WM-Datasheet.pdf (NLS0303021-AU-Enclosure-WM-Datasheet.pdf, 258 Kb) [Download]
