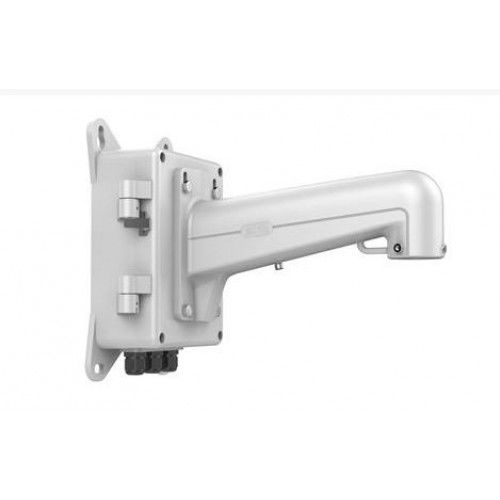

Wall Mount Junction Box DS-1602ZJ-BOX to Suit PTZ Camera Hikvision
Hikvision PTZ wall mount with junction box features an integrated wall bracket and cable junction. Ideal for CCTV installs with PTZ cameras.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PTZ Wall Mount Bracket with Junction Box, Hikvision PTZ Camera Wall Bracket, Speed Dome Wall Mount
Technical Specifications
- Mounting Type: Wall mount
- Application: PTZ and speed dome cameras
- Material: Aluminium alloy
- Colour: Hikvision white
- Installation Environment: Indoor or outdoor
- Junction Box: Integrated cable junction enclosure
- Cable Management: Internal cable routing
- Dimensions: 396.5 x 209 x 310 mm
- Safety Requirement: Install on a flat wall capable of supporting more than three times the combined camera and bracket load
- Dimensions (H x L x W): 396.5mm x 310mm x 209mm
- Weight: 3.23 kg
Key Features
- Integrated wall bracket and junction box in one assembly
- Designed for Hikvision PTZ and speed dome cameras
- Suitable for indoor and outdoor installations
- Aluminium alloy construction with surface spray treatment
- Improved weather-resistant junction-box design
- Internal cable routing helps protect and conceal camera cabling
- Hikvision white finish
- Wall must support more than three times the combined camera and bracket load
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV/security installer. Mount the bracket on a flat, structurally sound wall, route and seal cables appropriately, and verify that the wall supports more than three times the combined camera and bracket load. Any associated electrical or data cabling must comply with applicable Australian requirements.
Applications
- Wall-mounted PTZ camera installations
- Wall-mounted speed dome camera systems
- Indoor CCTV surveillance systems
- Outdoor CCTV surveillance systems
- Commercial, industrial and residential security installations
Standards & Compliance
- Applicable CCTV system installation guidance: AS/NZS 62676.4:2020
- Applicable security-system installation reference: AS/NZS 2201.1:2007
Environmental Benefits
- Aluminium alloy construction is durable and widely recyclable at end of service life
- Weather-resistant construction can extend service life and reduce replacement waste
- Integrated cable protection helps reduce premature cable damage and maintenance-related waste
Warranty Information
Hikvision Australia warranty applies when purchased through an authorised Australian distributor. The specific warranty term for this mounting accessory should be confirmed with the distributor at purchase; Hikvision's published five-year programme applies to listed premium camera and recorder series, not generally to mounting accessories.
Available Now
Available through Hikvision and authorised Australian CCTV/security distributors, subject to distributor stock and product lifecycle status.
