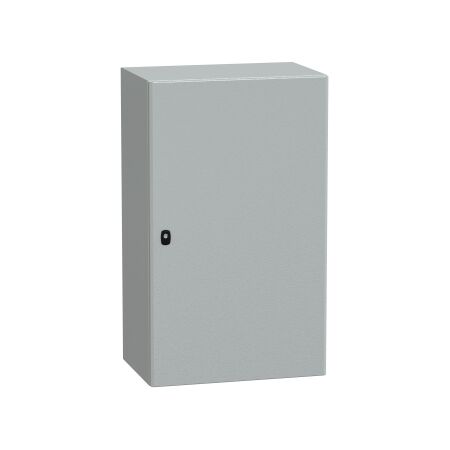

Wall Mounted Steel Enclosure | 1000x600x400mm | IP66 & IK10 Rated | Clipsal

BRAND: Clipsal
SKU: NSYS3D10640P
$715.00 List price: $1,072.50
Free pick up (over 25 kg)
For delivery quote message
Wall mounted steel enclosure with 1000x600x400mm dimensions and IP66 & IK10 ratings—ideal for industrial applications. Built for durability and security, with a plain door and 3-point lock.

Product Name/Title: Spacial S3D, Wall mounted steel enclosure, plain door, with mounting plate, 1000x600x400mm, IP66, IK10

Brand: Clipsal

SKU: NSYS3D10640P

Alternatively Known As: Wall Mounted Steel Enclosure, Industrial Enclosure, Electrical Enclosure

Technical Specifications
  • Material: Steel with epoxy-polyester powder finish.
  • Mounting plate: Galvanised steel.
  • Door type: Plain, reversible opening.
  • Number of doors: 1 front face door.
  • Lock type: 3 points lock, 3 mm double-bar.
  • NEMA degree of protection: NEMA 4X/13.
  • Dimensions (H x L x W): 1000mm x 400mm x 600mm
  • Weight: 45 kg
Key Features
  • Wall-mounted design for easy installation.
  • Plain door with a 3-point lock for enhanced security.
  • IP66 rating for protection against dust and water ingress.
  • IK10 rating for impact resistance.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for housing electrical components and devices in various environments.
Standards & Compliance
  • Complies with IEC 62208 for safety and performance standards.
Environmental Benefits
  • Complies with IEC 62208 for safety and performance standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Spacial S3D Wall Mounted Steel Enclosure is available now for immediate purchase. Ideal for industrial applications requiring durable and secure housing for electrical components.

NSYS3D10640P (NSYS3D10640P, 221 Kb) [Download]
