Wall Mounted Steel Enclosure | 600x400x250mm | IP66 & IK10 Rated | Plain Door by Clipsal

BRAND: Clipsal
SKU: NSYS3D6425P
$288.50 List price: $432.70
+
Wall mounted steel enclosure with IP66 and IK10 ratings—ideal for industrial applications. Built for robust protection, with a plain door and 3-point lock for enhanced security.

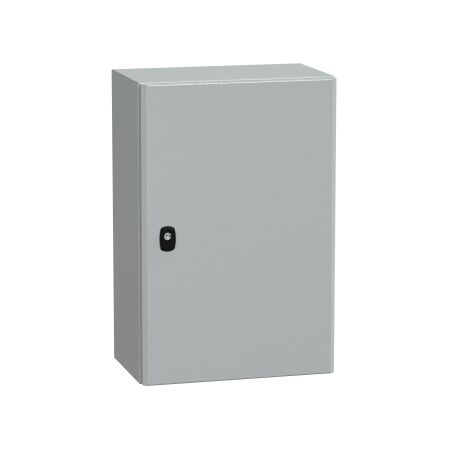

Product Name/Title: Spacial S3D, Wall mounted steel enclosure, plain door, with mounting plate, 600x400x250mm, IP66, IK10

Brand: Clipsal

SKU: NSYS3D6425P

Alternatively Known As: Wall Mounted Steel Enclosure, Industrial Enclosure, Electrical Enclosure

Technical Specifications
  • Material: Steel enclosure with galvanised steel mounting plate.
  • IK Rating: IK10 conforming to IEC 62262.
  • IP Rating: IP66 conforming to IEC 60529.
  • Lock Type: 3 points lock, 3 mm double-bar.
  • Accessibility: Front access for operation.
  • Dimensions (H x L x W): 600mm x 250mm x 400mm
  • Weight: 15 kg
Key Features
  • IP66 rated for protection against dust and water.
  • IK10 rated for impact resistance.
  • Plain door design with a 3-point lock for security.
  • Wall-mounted installation for space efficiency.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for various applications requiring robust protection for electrical components.
Standards & Compliance
  • Complies with IEC 62208 for safety and performance standards.
Environmental Benefits
  • Durable materials minimize the need for replacements and reduce waste.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Spacial S3D Wall Mounted Steel Enclosure is available now for immediate purchase. Ideal for industrial applications requiring durable and secure electrical protection.

NSYS3D6425P (NSYS3D6425P, 223 Kb) [Download]
