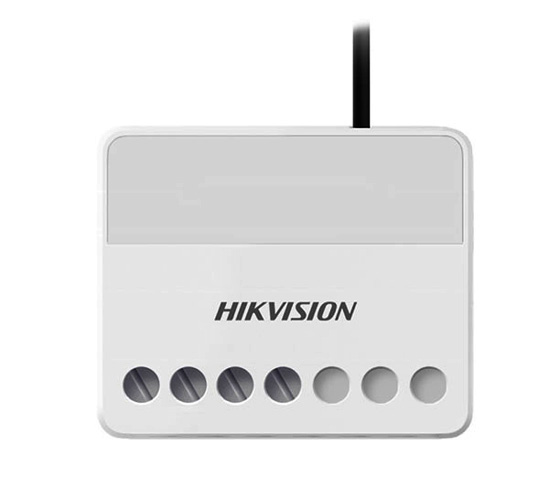

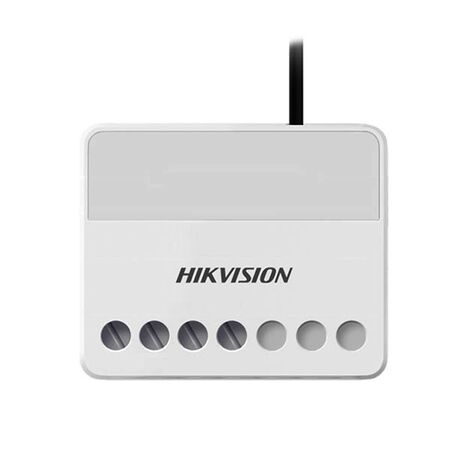

Wall Switch AX PRO Hikvision
Hikvision AX PRO wall switch module for alarm system control. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: AX PRO Wall Switch, Hikvision Wireless Wall Switch, AX PRO AC Relay Switch
Technical Specifications
- Model: DS-PM1-O1H-WB
- Product Type: Wireless wall switch and AC relay module
- Power Supply: 100–240 V AC, 50/60 Hz
- Relay Output: 1 x NO/NC relay, 100–240 V AC, maximum 13 A
- Wireless Frequency: 433 MHz
- Wireless Communication: Two-way, 2GFSK modulation
- Wireless Range: Up to 800 m in open space
- Wireless Security: AES-128 encryption
- Operating Temperature: -10 °C to 55 °C
- Operating Humidity: 10% to 90% relative humidity, non-condensing
- Installation Method: Wall mounting or installation inside an 86-type wall box
- Housing Material: Plastic
- Colour: White
- Status Indicators: Registration/signal, power and relay-status LEDs
- Scenario Control: Alarm, operation, fault, schedule or manual triggers
- Dimensions (H x L x W): 25mm x 18mm x 38mm
- Weight: 0.1 kg
Key Features
- Enables remote switching of compatible 100–240 V AC electrical loads
- Can be controlled through the AX PRO system, Hik-Connect app, keypad or keyfob
- Supports normally open and normally closed relay operation
- Two-way 433 MHz wireless communication with AES-128 encryption
- Compact enclosure suitable for concealed installation or an 86-type wall box
- Automatic activation can be linked to alarm, fault, schedule and other programmed events
- Integrated LED indicators show registration, signal, power and relay status
Professional Installation Requirements
- Mains electrical installation must be performed by a licensed electrician. Install and commission the module in accordance with the Hikvision wiring instructions, applicable electrical requirements and the requirements for intruder alarm systems.
Applications
- Remote switching of compatible lighting and electrical loads
- Automation of AC-powered equipment within the 13 A relay rating
- Alarm-triggered switching and reset functions
- Scheduled or manually controlled electrical circuits
- AX PRO residential and commercial intruder alarm installations
Standards & Compliance
- AS/NZS 2201.1:2007 for the design, installation, commissioning and maintenance context of intruder alarm systems
- AS/NZS 3000:2018 for applicable mains electrical wiring and installation requirements
Environmental Benefits
- Supports scheduled and event-based control of connected loads, which may help reduce unnecessary operating time and energy use
- Compact design uses less installation material and can extend the service life of connected automation equipment
- Plastic housing and electronic components should be disposed of through appropriate electrical and electronic waste recycling channels
Warranty Information
Typically supplied in Australia with a 3-year back-to-base manufacturer warranty for Hikvision alarm products through authorised distribution, subject to Hikvision warranty terms, proof of purchase and correct installation.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional stock and product lifecycle status.
