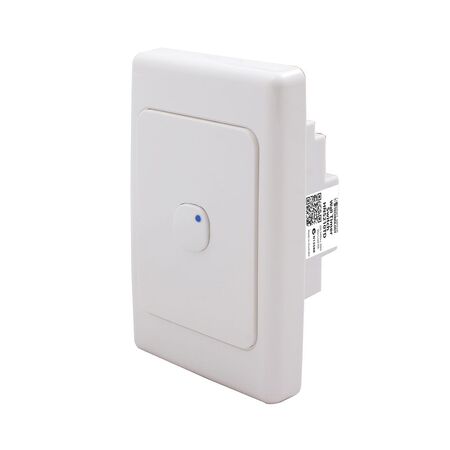

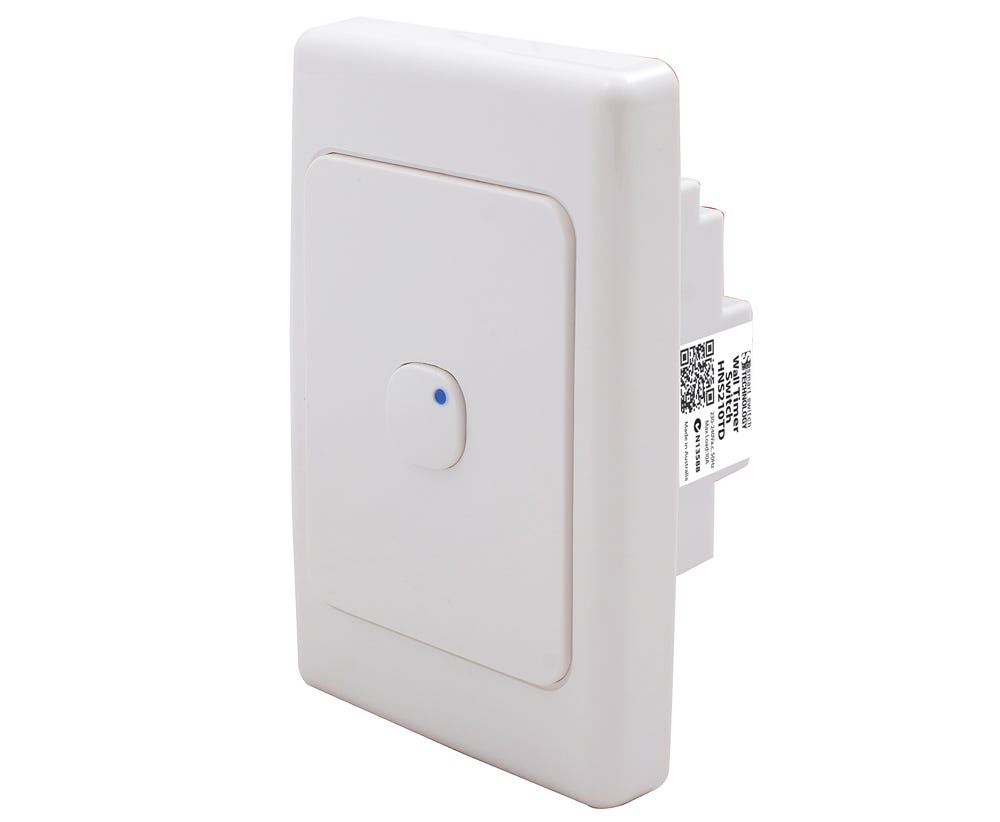

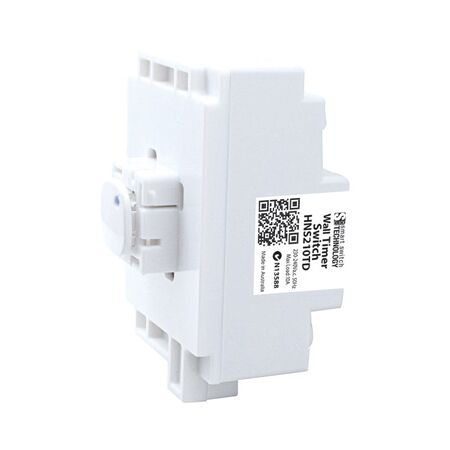

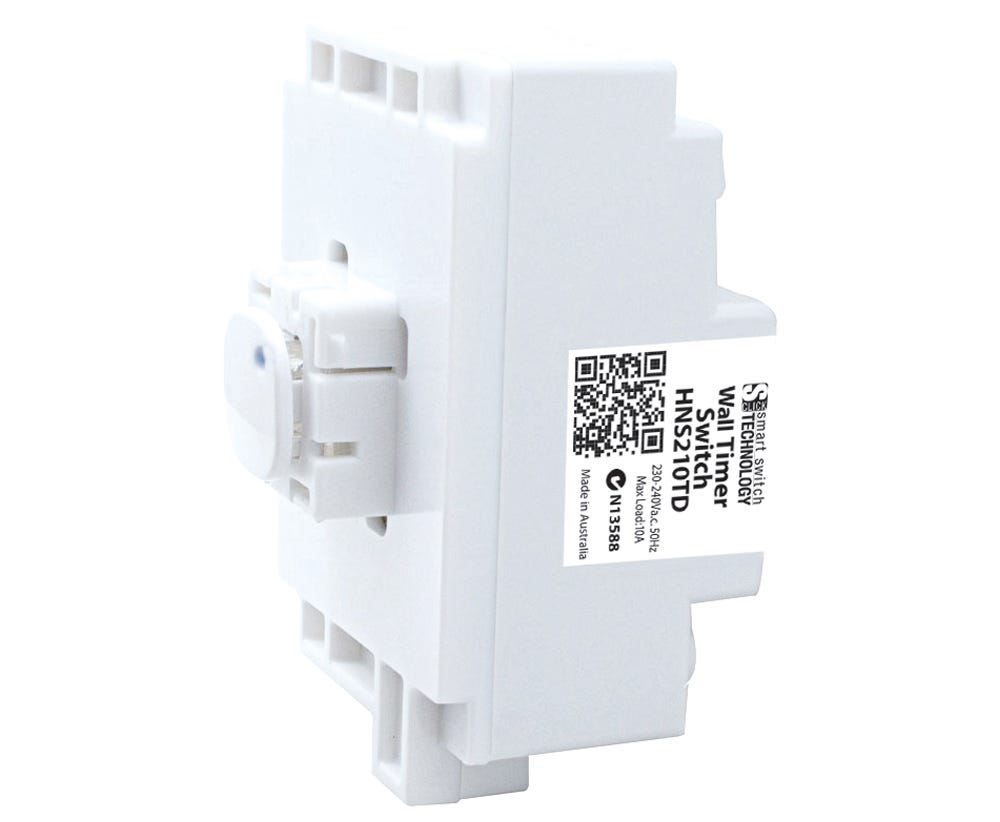

Wall Timer Switch 230VAC | 10A High Current | Motor Load Capacity Up to 8A | Programmable Timer | @EA of 1 | by Cabac
The Wall Timer Switch 230VAC is a high current timer switch rated for 10A, perfect for controlling motor loads up to 8A. With a timer duration ranging from 15 seconds to over 4 hours and selectable operating modes, it’s ideal for fans, pumps, and high power lighting applications. Designed for professional installation, this switch helps reduce energy consumption by automatically turning off devices after a set time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Wall Timer Switch 230VAC | 10A High Current | Motor Load Capacity Up to 8A | Programmable Timer | @EA of 1 | by Cabac
Brand: Cabac
SKU: HNS210TD
Alternatively Known As: Wall Timer Switch 230VAC 10A, High Current Timer Switch, Motor Timer Switch
Technical Specifications
- Voltage: 230VAC
- Current Rating: 10A
- Motor Load Capacity: Up to 8A
- Timer Duration: 15 seconds to over 4 hours
- Timer Increment Settings: 15 seconds or 4 minutes
- Operating Modes: ON/OFF timer switch, restart timer switch
- Configuration: Eight DIP switches
- Button Function: Programmable to restart timer or turn off load
- Dimensions (H x L x W): 90mm x 40mm x 70mm
- Weight: 0.2 kg
Key Features
- High current 10A timer switch suitable for motor loads up to 8A
- Selectable operating modes: ON/OFF timer switch or restart timer switch
- Configurable using eight DIP switches for precise timer function customization
- Timer duration ranges from 15 seconds to over 4 hours with selectable increments
- Programmable button action to restart timer or turn off load during operation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Motor loads up to 8A
- Fans and pumps for pools and spas
- High power lighting and wiring device applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by automatically switching off devices after set time
- Supports efficient operation of motors and pumps, reducing unnecessary power use
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Cabac S-Click HNS210TD Wall Timer Switch 230VAC 10A is available now for immediate purchase. Ideal for high power motor and pump control applications in residential and commercial settings.
