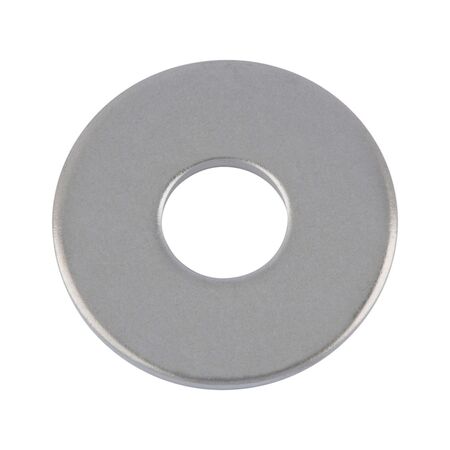

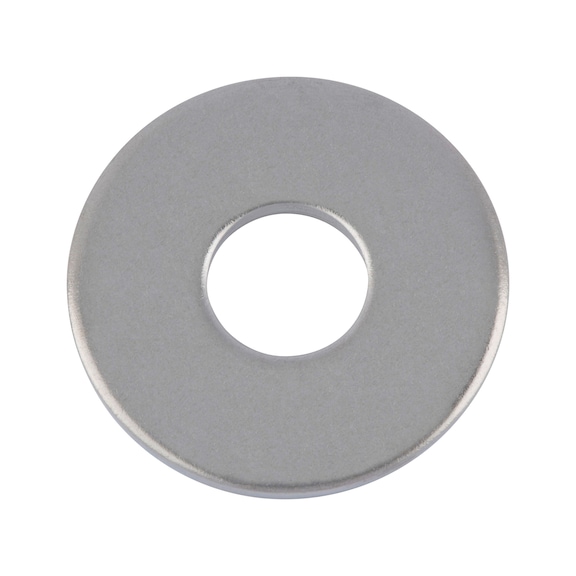

Washer DIN 9021 | Large Outside Diameter | A2 Stainless Steel | Plain Finish | @Pack of 10 | by Wurth
Washer DIN 9021 with a large outside diameter and made from A2 stainless steel—ideal for mechanical assemblies requiring M16 screw thread washers. This plain finish washer is perfect for industrial and construction fastening applications, providing enhanced load distribution and corrosion resistance in outdoor and marine environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Washer DIN 9021 | Large Outside Diameter | A2 Stainless Steel | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 41916
Alternatively Known As: Large Diameter Washer, Stainless Steel Washer, DIN 9021 Washer, M16 Washer
Technical Specifications
- Suitable for screw thread: M16
- Internal diameter (d1): 17 mm
- Outer diameter (d2): 50 mm
- Thickness (h1): 3 mm
- Standards: DIN 9021
- Material: Stainless steel A2
- Surface: Plain
- Vickers hardness: 140 HV
- Design: With large outside diameter
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3mm x 50mm x 50mm
- Weight: 0.05 kg
Key Features
- Large outside diameter design for enhanced load distribution
- Made from A2 stainless steel for corrosion resistance
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring M16 screw thread washers
- Industrial and construction fastening applications
- Corrosion-resistant fastening in outdoor and marine environments
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, construction, and mechanical fastening applications.
