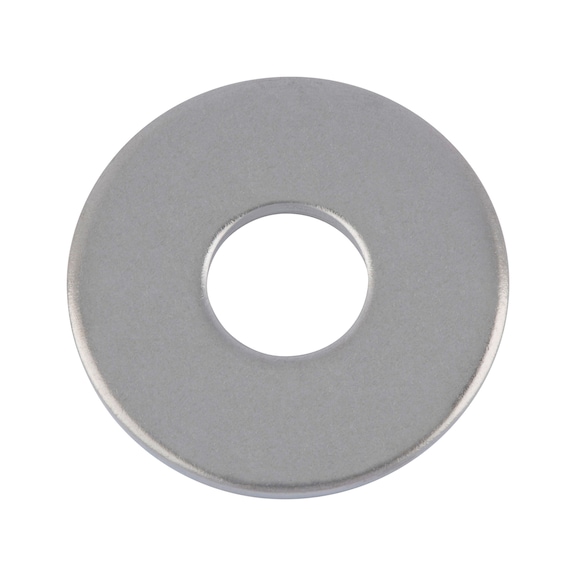

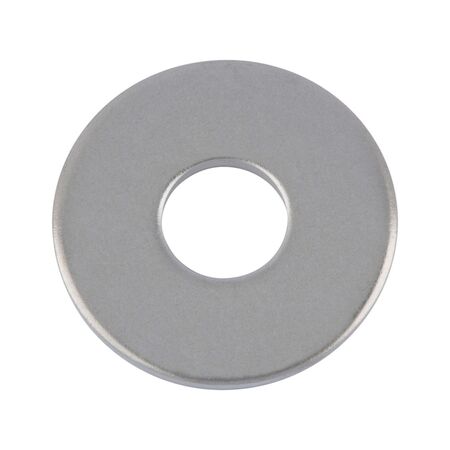

Washer DIN 9021 | Large Outside Diameter | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Washer DIN 9021 with a large outside diameter and made from corrosion-resistant A2 stainless steel—ideal for mechanical fastening and assembly. This plain finish washer is perfect for M5 screw threads, ensuring optimal load distribution in industrial, automotive, and construction applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Washer DIN 9021 | Large Outside Diameter | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4195
Alternatively Known As: Large Diameter Washer, DIN 9021 Washer, Stainless Steel Flat Washer, M5 Washer
Technical Specifications
- Suitable for screw thread: M5
- Internal diameter (d1): 5.3 mm
- Outer diameter (d2): 15 mm
- Thickness (h1): 1.2 mm
- Material: Stainless steel A2
- Surface: Plain
- Vickers hardness: 140 HV
- Design: With large outside diameter
- Standards: DIN 9021
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.2mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Large outside diameter for increased load distribution
- Made from corrosion-resistant A2 stainless steel
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- No special installation required; suitable for use with M5 screws by qualified personnel.
Applications
- Mechanical fastening and assembly
- Used with M5 screw threads for load distribution
- Suitable for industrial, automotive, and construction applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening and assembly applications.
