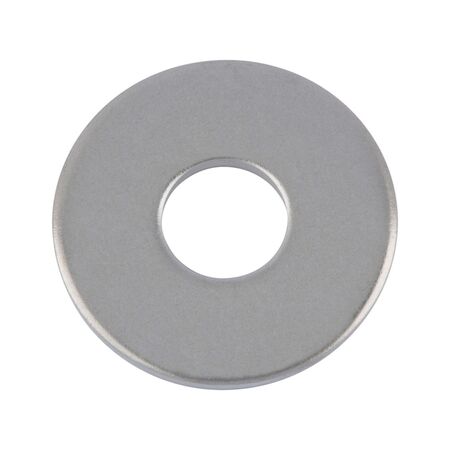

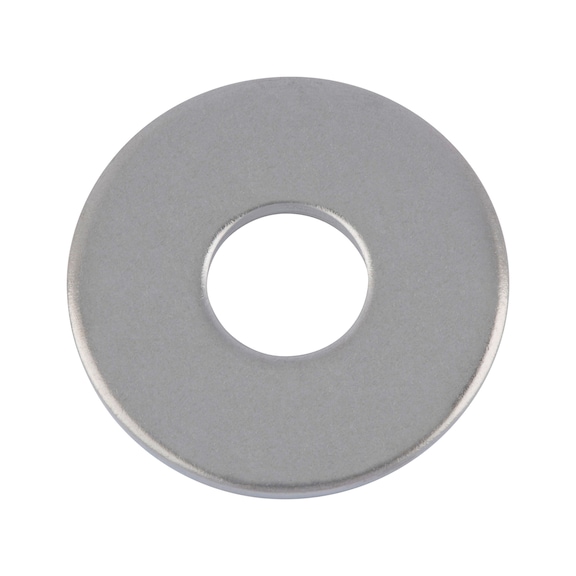

Washer DIN 9021 | Large Outside Diameter | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Washer DIN 9021 with a large outside diameter and made from corrosion-resistant A2 stainless steel—ideal for mechanical assemblies requiring M8 screw thread washers. This plain finish washer ensures increased load distribution and is RoHS-compliant, making it perfect for industrial and construction fastening applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Washer DIN 9021 | Large Outside Diameter | A2 Stainless Steel | Plain Finish | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4198
Alternatively Known As: Large diameter washer, DIN 9021 washer, stainless steel flat washer, M8 washer
Technical Specifications
- Suitable for screw thread: M8

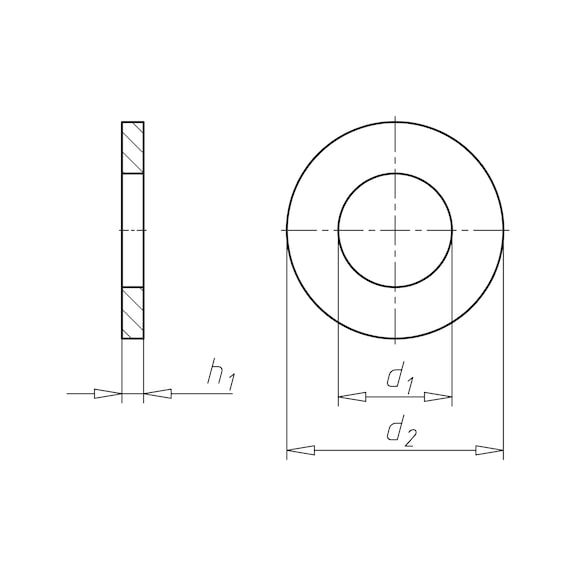

- Internal diameter (d1): 8.4 mm
- Outer diameter (d2): 24 mm
- Thickness (h1): 2 mm
- Standards: DIN 9021
- Material: Stainless steel A2
- Surface: Plain
- Vickers hardness: 140 HV
- Design: With large outside diameter
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2mm x 24mm x 24mm
- Weight: 0.02 kg
Key Features
- Large outside diameter design for increased load distribution
- Made from corrosion-resistant A2 stainless steel
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- No special professional installation required; suitable for standard mechanical assembly practices.
Applications
- Mechanical assemblies requiring M8 screw thread washers
- Industrial and construction fastening applications
- General purpose use in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical fastening and industrial applications.
