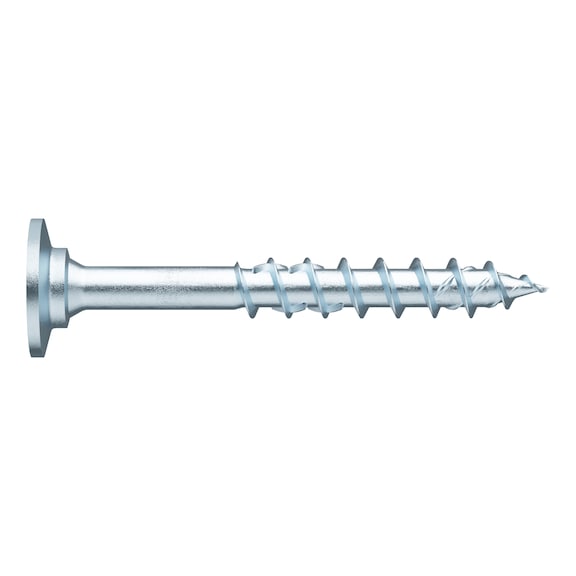

Washer Head Screw ASSY® 4 WH II | Zinc Plated Steel | Partial Thread | 50 PCS | by Wurth
The ASSY® 4 WH II washer head screw is designed for structural wood fastening, featuring a durable zinc plated steel construction and a partial thread design. Ideal for timber construction and element assembly, this screw ensures high power transmission and reduced risk of breakage, making it perfect for professional applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Washer Head Screw ASSY® 4 WH II | Zinc Plated Steel | Partial Thread | 50 PCS | by Wurth
Brand: Wurth
SKU: 177580260
Alternatively Known As: Wood screw with washer head, Partial thread wood screw, Structural wood screw, Zinc plated wood screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 260 mm
- Thread length: 100 mm
- Head type: Washer head II
- Head diameter: 18.4 mm
- Head height: 2.5 mm
- Internal drive: RW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Coarse thread
- Core diameter: 5.3 mm
- Shape of tip: Tip with hilltop milling cutter
- Angle of the tip: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Additional accessory: Bit lock
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 260mm x 18mm
- Weight: 0.15 kg
Key Features
- Universal partial-thread screw with washer head for wood-wood fastening
- Suitable for 90° or inclined screw connections in structural wood construction
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess and perfect bit fit for precise positioning and one-handed working
- Compatibility with previous AW drive
- Visually appealing screw connection with option of countersinking
- High head penetration values and strong combination of wooden components
- Reduced force required when fastening due to milling shank displacement effect
- Minimized risk of screw breakage due to high breaking torque
- Reduced risk of injury from protruding metal chips
- High protection of application tools
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Smooth thread start ensures optimized recessing
Professional Installation Requirements
- Professional installation recommended for structural applications to ensure compliance with building codes and safety standards.
Applications
- Structural woodwork
- On rafter insulation
- Element construction
- Timber construction
- Timber panel construction
- Roof
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for structural wood construction and timber fastening applications.
