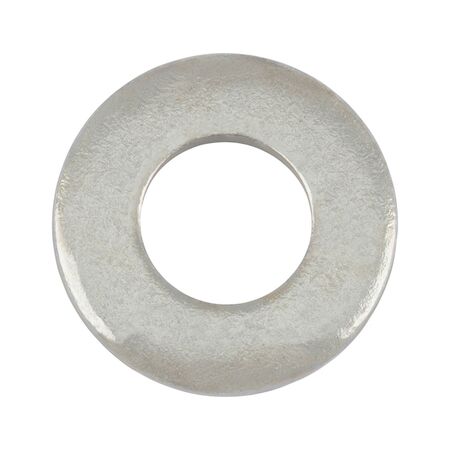

Washer for Screws with Heavy Clamping Sleeve | DIN 7349 Compliant | Zinc-Plated Steel | Corrosion Resistant | @Pack of 10 | by Wurth
The Washer for Screws with Heavy Clamping Sleeve is designed for robust mechanical fastening, ensuring compliance with DIN 7349 standards. Made from zinc-plated steel with blue passivation, it offers excellent corrosion resistance and durability with a hardness of 200 HV. Ideal for industrial machinery assembly and construction applications, this washer provides the heavy clamping force needed for secure fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Washer for Screws with Heavy Clamping Sleeve | DIN 7349 Compliant | Zinc-Plated Steel | Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 49770012
Alternatively Known As: Heavy Duty Clamping Sleeve Washer, DIN 7349 Washer, Zinc Plated Steel Washer
Technical Specifications
- Suitable for screw thread: M12
- Internal diameter (d1): 13 mm
- Outer diameter (d2): 30 mm
- Thickness (h1): 6 mm
- Material: Steel
- Vickers hardness: 200 HV
- Surface finish: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6mm x 30mm x 30mm
- Weight: 0.05 kg
Key Features
- Designed for screws with heavy clamping sleeves
- Complies with DIN 7349 standard
- Zinc-plated steel with blue passivation for corrosion resistance
- High hardness of 200 HV for durability
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening requiring heavy clamping force
- Industrial machinery assembly
- Construction and structural applications
- Automotive and heavy equipment fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Washer for screws with heavy clamping sleeve is available for immediate purchase, ideal for industrial and construction fastening applications.
