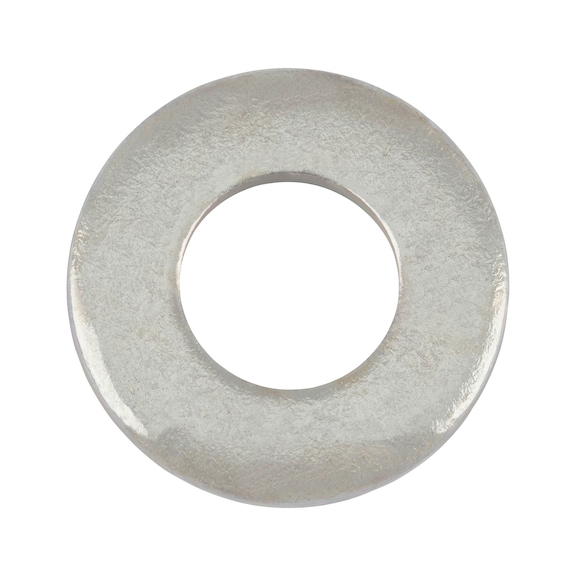

Washer for Screws with Heavy Clamping Sleeve | DIN 7349 | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
The Washer for Screws with Heavy Clamping Sleeve is designed for robust mechanical fastening, featuring a durable zinc-plated steel construction and a blue passivated finish. Ideal for industrial machinery assembly and construction applications, this washer complies with DIN 7349 standards and offers high hardness of 200 HV for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Washer for Screws with Heavy Clamping Sleeve | DIN 7349 | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 49770014
Alternatively Known As: Heavy Duty Clamping Sleeve Washer, DIN 7349 Washer, Zinc Plated Steel Washer
Technical Specifications
- Suitable for screw thread: M14
- Internal diameter (d1): 15 mm
- Outer diameter (d2): 36 mm
- Thickness (h1): 6 mm
- Material: Steel
- Vickers hardness: 200 HV
- Surface finish: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6mm x 36mm x 36mm
- Weight: 0.05 kg
Key Features
- Designed for screws with heavy clamping sleeves
- Made from steel with zinc plating for corrosion resistance
- Blue passivated surface finish
- Complies with DIN 7349 standard
- High hardness of 200 HV for durability
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening requiring heavy clamping force
- Industrial machinery assembly
- Construction and structural applications
- Automotive and heavy equipment fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Washer for screws with heavy clamping sleeve is available for immediate purchase, ideal for industrial and construction fastening applications.
