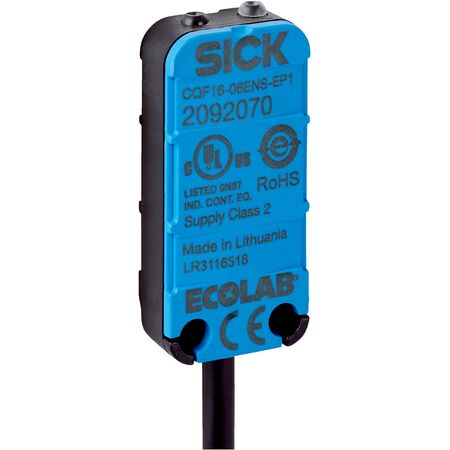

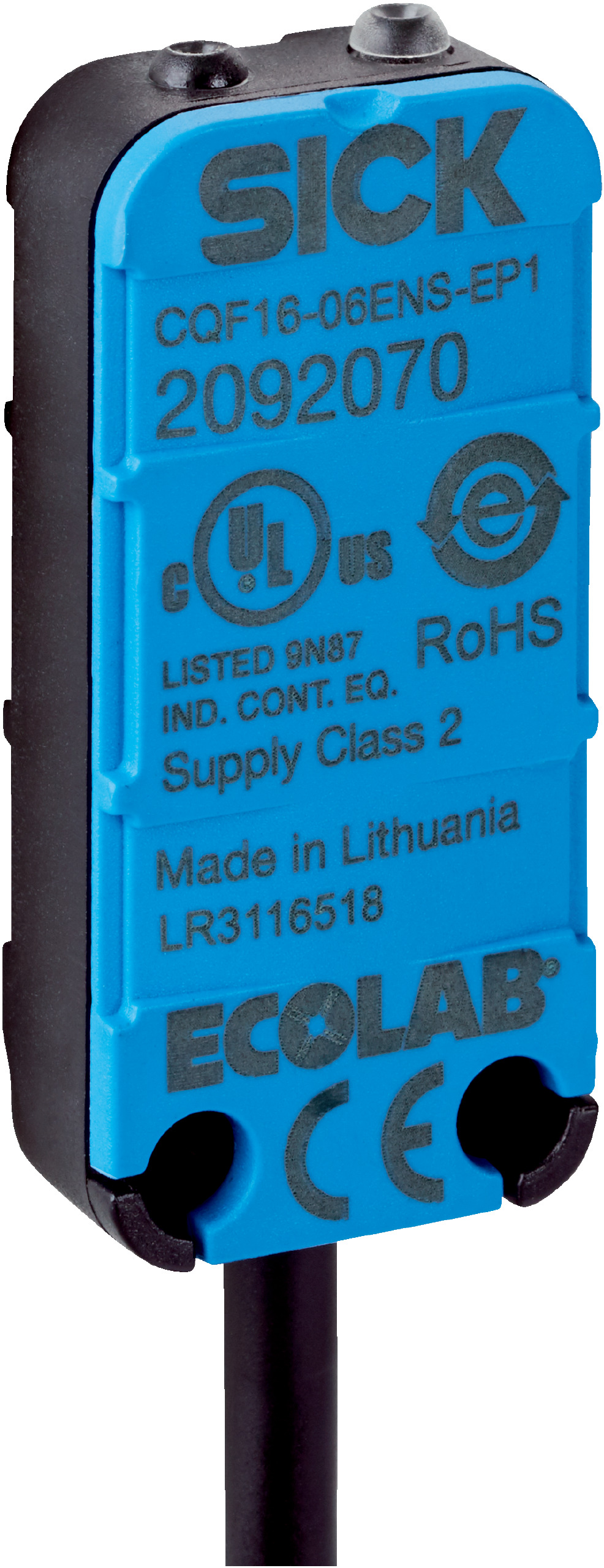

Water-Based Liquid Sensor | PNP Output | IP67/IP68/IP69K Rated | Flush/Non-Flush Installation | by SICK
The water-based liquid sensor CQF16-06EPOEW1 is designed for detecting liquids with conductivity up to 50 mS/cm, making it ideal for industrial automation and liquid level detection. With a robust IP67/IP68/IP69K rated enclosure and a PNP output, this sensor ensures reliable performance in various environments. Its versatile installation options and durable design make it suitable for a range of applications, ensuring minimal environmental contamination risk.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V to 30 V DC
- Current consumption: 13 mA
- Voltage drop: ≤ 1.5 V DC
- Switching output: PNP, NC function
- Switching frequency: 10 Hz
- Cable: PVC, 4-wire, 2 m length
- Protection class: III
- EMC standard: EN 60947-5-2
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +80 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Plastic, PBT
- Enclosure rating: IP67, IP68, IP69K
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 34mm x 8mm x 16mm
- Weight: 0.1 kg
Key Features
- Rectangular plastic PBT housing
- Sensing range from 0.5 mm to 6 mm
- Flush and non-flush installation types
- Switching frequency of 10 Hz
- PNP switching output with NC function
- IP67, IP68, IP69K rated enclosure for high protection
- Cable connection, 4-wire, 2 m length
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms)
- Ambient operating temperature from -25 °C to +80 °C
- Mounting bracket included
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct wiring and mounting for optimal sensor performance and safety.
Applications
- Detection of water-based liquids with conductivity up to 50 mS/cm
- Suitable for containers with minimum diameter of 8 mm
- Plastic container thickness: 0.5 mm to 6 mm
- Glass container thickness: 0.5 mm to 4 mm
- Industrial automation and liquid level detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High protection rating minimizes environmental contamination risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CQF16-06EPOEW1 sensor is available for immediate purchase, ideal for industrial automation and liquid detection applications.
