Water Sensor Ness

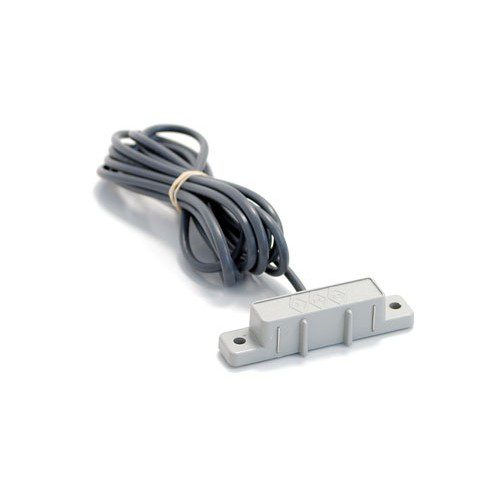

Ness water sensor, model 2600, detects water. Ideal for water detection installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness Water Leak Sensor, Ness Moisture Sensor, Ness 101-297 Water Sensor
Technical Specifications
- Model: 2600
- Operating Voltage: 12 V DC
- Operating Current: 10 mA
- Detection Method: Moisture bridge across sensor contacts
- Relay Output: Normally closed dry contact
- Contact Resistance: 100 mΩ
- Maximum Switching Voltage: 200 V DC
- Maximum Switching Current: 500 mA
- Detection Depth: Approximately 3 mm of water
- Operating Temperature: -40°C to 75°C
- Connections: Red positive, black negative, green/white relay contact
- Lead: Approximately 1.8 m jacketed lead
- Dimensions (H x L x W): 13.9mm x 63.5mm x 13.2mm
- Weight: 0.1 kg
Key Features
- Detects water and other conductive non-flammable liquids
- Activates a dry contact for connection to an alarm system or external device
- No mechanical sensing parts
- Automatic reset after moisture is removed
- Can detect a shallow water layer of approximately 3 mm
- Suitable for use with hardwired alarm panels
- Compact sensor for confined installation locations
Professional Installation Requirements
- Installation should be completed by a competent security or alarm technician. Connect only to a suitable 12 V DC supply and configure the relay circuit in accordance with the connected alarm panel or external device requirements.
Applications
- Bathrooms and laundries
- Kitchens and dishwasher areas
- Computer-room and telecommunications-room subfloors
- Areas adjacent to water tanks, pipes and water heaters
- Evaporative air-conditioner drip pans
- Overflow and drain monitoring
- Plant rooms and other locations requiring water-leak detection
Environmental Benefits
- Low operating current of approximately 10 mA supports low energy consumption
- No mechanical sensing parts can reduce component wear and replacement waste
- Early water detection may help limit building, equipment and material damage from leaks
- Compact construction uses relatively little material compared with larger detection assemblies
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.
Available Now
Available through Ness and authorised Australian security and electrical distributors.
