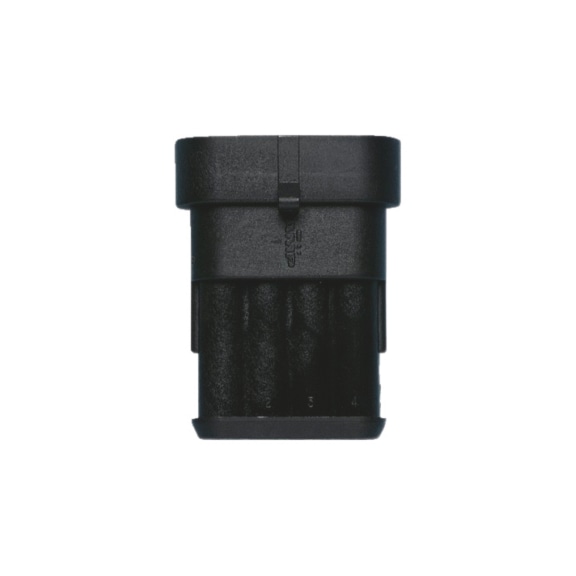

Waterproof Pin Housing TE Superseal 15 Series | IP67 Rated | Durable PA 6.6 Material | 4 Pins | by Wurth
The Waterproof Pin Housing TE Superseal 15 Series is designed for reliable electrical connections in automotive and industrial applications. With an IP67 rating for dust and water protection, this connector supports wire cross sections from 0.35 to 2.5 mm² and operates in extreme temperatures from -40 to 125 °C. Built from durable PA 6.6 polyamide, it ensures longevity and compliance with IEC standards, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Waterproof Pin Housing TE Superseal 15 Series | IP67 Rated | Durable PA 6.6 Material | 4 Pins | by Wurth
Brand: Wurth
SKU: 5551024
Alternatively Known As: Waterproof 4 Pin Connector, TE Superseal 15 Pin Housing, IP67 Electrical Connector
Technical Specifications
- Number of electrical poles: 4 PCS
- Contact gauge: 1.5
- Min./max. wire cross section: 0.35-2.5 mm²
- IP protection class: IP67
- Max. nominal voltage: 24 V/DC
- Max. current: 14 A
- Min./max. temperature conditions: -40 to 125 °C
- Material: PA 6.6 - Polyamide
- Colour: Black
- Dimensions (H x L x W): 20mm x 50mm x 40mm
- Weight: 0.05 kg
Key Features
- Complies with IEC 529 and DIN 40050 standards
- IP67 rated for dust and water protection
- Durable PA 6.6 Polyamide material
- Suitable for wire cross sections from 0.35 to 2.5 mm²
- Supports up to 24 V/DC and 14 A current
- Operates in temperature range from -40 to 125 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and electrical safety.
Applications
- Automotive wiring harnesses
- Industrial electrical connections
- Outdoor and harsh environment electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- IP67 rating ensures long product life by preventing ingress of dust and water, reducing waste from replacements
- Durable polyamide material supports sustainability through extended usage
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Waterproof Pin Housing TE Superseal 15 Series 4 PCS is available for immediate purchase, ideal for automotive and industrial electrical connection applications.
