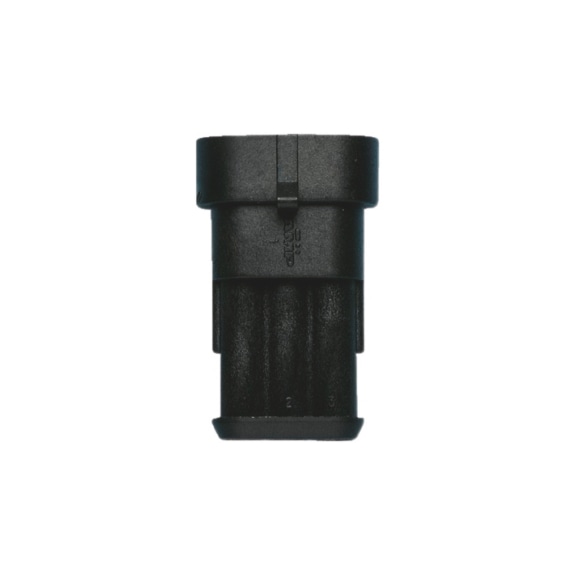

Waterproof Pin Housing TE Superseal 15 Series | IP67 Rated | Durable PA 6.6 Material | @Pack of 4 | by Wurth
Waterproof pin housing TE Superseal 15 series is designed for reliable electrical connections in automotive and industrial applications. With an IP67 rating for dust and water protection, this housing supports wire cross sections from 0.35 to 2.5 mm² and operates in extreme temperatures from -40 to 125 °C. Built from durable PA 6.6 material, it ensures longevity and safety in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Waterproof Pin Housing TE Superseal 15 Series | IP67 Rated | Durable PA 6.6 Material | @Pack of 4 | by Wurth
Brand: Wurth
SKU: 5551023
Alternatively Known As: Waterproof electrical connector housing, TE Superseal 15 pin housing, IP67 connector housing
Technical Specifications
- Number of electrical poles: 3 PCS
- Contact gauge: 1.5
- Min./max. wire cross section: 0.35-2.5 mm²
- IP protection class: IP67
- Max. nominal voltage: 24 V/DC
- Max. current: 14 A
- Min./max. temperature conditions: -40 to 125 °C
- Material: PA 6.6 - Polyamide
- Colour: Black
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- IP67 rated for dust and water protection
- Complies with IEC 529 and DIN 40050 standards
- Durable PA 6.6 Polyamide material
- Suitable for wire cross sections from 0.35 to 2.5 mm²
- Supports up to 24 V/DC and 14 A current
- Operates in temperature range from -40 to 125 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and electrical safety.
Applications
- Automotive electrical connections
- Industrial machinery wiring
- Outdoor and harsh environment electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed design prevents ingress of dust and water, reducing maintenance and replacement waste
- Durable materials extend product lifespan, minimizing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Waterproof Pin Housing TE Superseal 15 Series is available now for immediate purchase. Ideal for automotive and industrial electrical connection applications.
