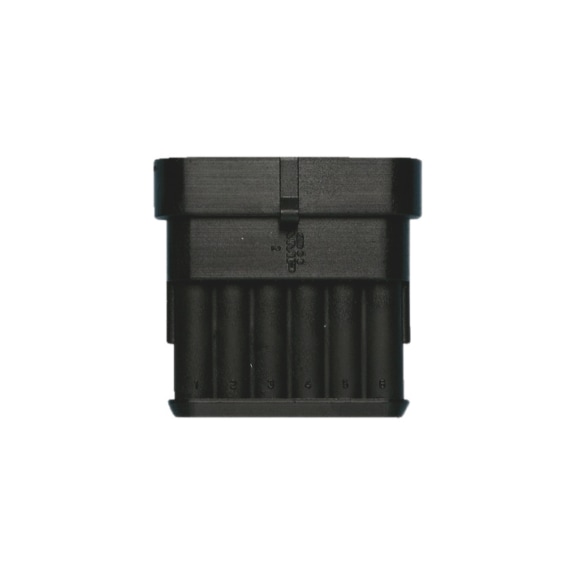

Waterproof Pin Housing TE Superseal 15 Series | IP67 Rated | Durable Polyamide | 6 Poles | @Pack of 4 | by Wurth
The Waterproof Pin Housing TE Superseal 15 Series is designed for reliable electrical connections in automotive and industrial applications. With an IP67 rating for dust and water protection, this durable polyamide housing supports wire cross sections from 0.35 to 2.5 mm² and operates in extreme temperatures from -40 to 125 °C. Ideal for harsh environments, it ensures safety and longevity in your electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Waterproof Pin Housing TE Superseal 15 Series | IP67 Rated | Durable Polyamide | 6 Poles | @Pack of 4 | by Wurth
Brand: Wurth
SKU: 5551026
Alternatively Known As: Waterproof electrical connector housing, TE Superseal 15 pin housing, IP67 connector housing
Technical Specifications
- Number of electrical poles: 6 PCS
- Contact gauge: 1.5
- Min./max. wire cross section: 0.35-2.5 mm²
- IP protection class: IP67
- Max. nominal voltage: 24 V/DC
- Max. current: 14 A
- Min./max. temperature conditions: -40 to 125 °C
- Material: PA 6.6 - Polyamide
- Colour: Black
- Dimensions (H x L x W): 20mm x 50mm x 40mm
- Weight: 0.05 kg
Key Features
- IP67 rated for dust and water protection
- Complies with IEC 529 and DIN 40050 standards
- Durable polyamide (PA 6.6) material construction
- Suitable for wire cross sections from 0.35 to 2.5 mm²
- Supports up to 14 A current and 24 V/DC voltage
- Operates in temperature range from -40 to 125 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and electrical safety.
Applications
- Automotive electrical connections
- Industrial machinery wiring
- Outdoor and harsh environment electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhanced durability reduces replacement frequency and waste
- Waterproof design prevents corrosion and environmental damage
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Waterproof Pin Housing TE Superseal 15 Series is available for immediate purchase, ideal for automotive and industrial electrical connection applications.
