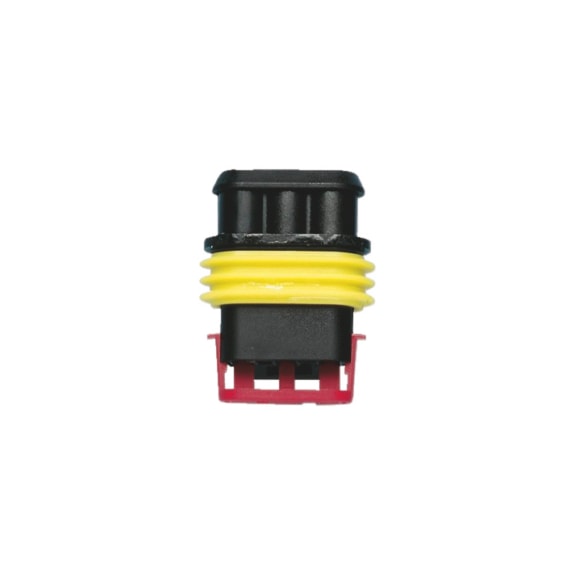

Waterproof Socket Housing TE Superseal 1.5 Series | IP67 Rated | Durable Polyamide Construction | 4 PCS | by Wurth
Waterproof socket housing TE Superseal 1.5 Series is designed for reliable electrical connections in automotive and industrial applications. With an IP67 rating for dust and water protection, this durable polyamide housing ensures safety and longevity. Ideal for outdoor installations, it supports a wide range of wire sizes and complies with IEC standards, making it a perfect choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Waterproof Socket Housing TE Superseal 1.5 Series | IP67 Rated | Durable Polyamide Construction | 4 PCS | by Wurth
Brand: Wurth
SKU: 5551033
Alternatively Known As: Waterproof electrical connector housing, TE Superseal socket, IP67 connector housing
Technical Specifications
- Number of electrical poles: 3 PCS
- Contact gauge: 1.5
- Min./max. wire cross section: 0.35-2.5 mm²
- IP protection class: IP67
- Max. nominal voltage: 24 V/DC
- Max. current: 14 A
- Operating temperature range: -40 to 125 °C
- Material: PA 6.6 - Polyamide
- Colour: Black
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- IP67 rated for dust and water protection
- Complies with IEC 529 and DIN 40050 standards
- Durable polyamide (PA 6.6) material construction
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper sealing and electrical safety.
Applications
- Automotive electrical connections
- Industrial machinery wiring
- Outdoor electrical installations requiring waterproof connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Sealed design prevents ingress of dust and water, reducing maintenance and replacement waste
- Durable materials extend product lifespan, minimizing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Waterproof Socket Housing TE Superseal 1.5 Series 4 PCS is available now for immediate purchase. Ideal for automotive, industrial, and outdoor electrical applications requiring robust waterproof connectors.
