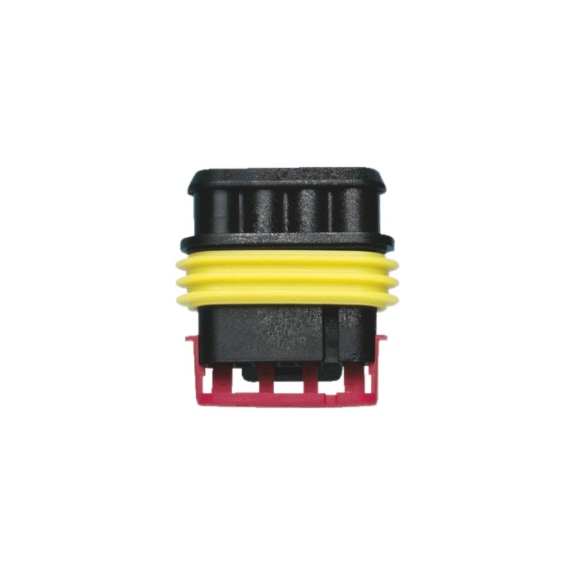

Waterproof Socket Housing TE Superseal 1.5 Series | IP67 Rated | 4 Poles | Durable PA 6.6 Material | by Wurth
Waterproof socket housing TE Superseal 1.5 Series is designed for reliable electrical connections in automotive and industrial applications. With an IP67 rating for dust and water protection, this durable housing supports wire cross sections from 0.35 to 2.5 mm² and operates in extreme temperatures from -40 to 125 °C. Ideal for outdoor installations, it ensures safety and longevity in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Waterproof Socket Housing TE Superseal 1.5 Series | IP67 Rated | 4 Poles | Durable PA 6.6 Material | by Wurth
Brand: Wurth
SKU: 5551034
Alternatively Known As: Waterproof electrical connector housing, TE Superseal 1.5 socket, IP67 connector housing
Technical Specifications
- Number of electrical poles: 4 PCS
- Contact gauge: 1.5
- Min./max. wire cross section: 0.35-2.5 mm²
- IP protection class: IP67
- Max. nominal voltage: 24 V/DC
- Max. current: 14 A
- Min./max. temperature conditions: -40 to 125 °C
- Material: PA 6.6 - Polyamide
- Colour: Black
- Dimensions (H x L x W): 20mm x 60mm x 40mm
- Weight: 0.05 kg
Key Features
- IP67 rated for dust and water ingress protection
- Complies with IEC 529 and DIN 40050 standards
- Durable PA 6.6 Polyamide material construction
- Suitable for wire cross sections from 0.35 to 2.5 mm²
- Supports a maximum nominal voltage of 24 V/DC and current of 14 A
- Operates reliably in temperature conditions from -40 to 125 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper sealing and electrical safety.
Applications
- Automotive electrical connections
- Industrial machinery wiring
- Outdoor electrical installations requiring waterproof connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances durability and longevity of electrical connections, reducing waste from replacements
- Protects against environmental damage, minimizing risk of electrical failures and associated hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Waterproof Socket Housing TE Superseal 1.5 Series 4 PCS is available now for immediate purchase. Ideal for automotive, industrial, and outdoor electrical applications requiring reliable waterproof connections.
