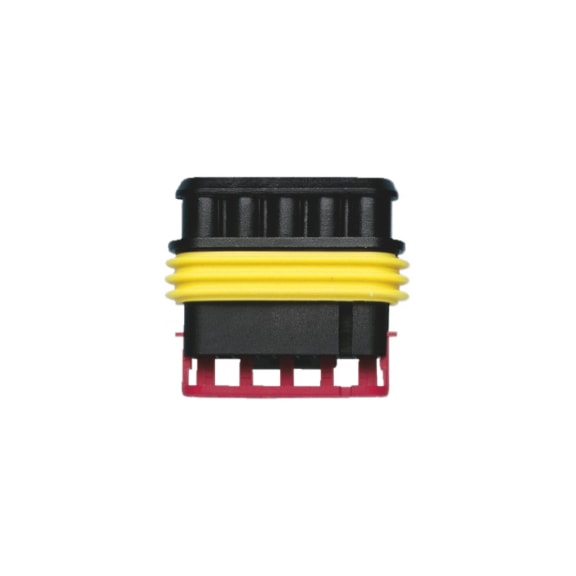

Waterproof Socket Housing TE Superseal 1.5 Series | IP67 Rated | Durable Polyamide | 4 PCS | by Wurth
The Waterproof Socket Housing TE Superseal 1.5 Series is designed for reliable electrical connections in automotive and industrial applications. With an IP67 rating for dust and water protection, this durable polyamide housing supports wire cross sections from 0.35 to 2.5 mm² and operates safely at up to 24 V/DC and 14 A. Ideal for outdoor installations, it ensures long-lasting performance and reduced failure rates.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Waterproof Socket Housing TE Superseal 1.5 Series | IP67 Rated | Durable Polyamide | 4 PCS | by Wurth
Brand: Wurth
SKU: 5551035
Alternatively Known As: Waterproof electrical connector housing, TE Superseal socket, IP67 connector housing
Technical Specifications
- Number of electrical poles: 5 PCS
- Contact gauge: 1.5
- Wire cross section range: 0.35-2.5 mm²
- IP protection class: IP67
- Maximum nominal voltage: 24 V/DC
- Maximum current: 14 A
- Operating temperature range: -40 to 125 °C
- Material: PA 6.6 - Polyamide
- Colour: Black
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- IP67 rated for dust and water protection
- Complies with IEC 529 and DIN 40050 standards
- Durable polyamide (PA 6.6) material construction
- Suitable for wire cross sections from 0.35 to 2.5 mm²
- Supports up to 24 V/DC and 14 A current
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and electrical safety.
Applications

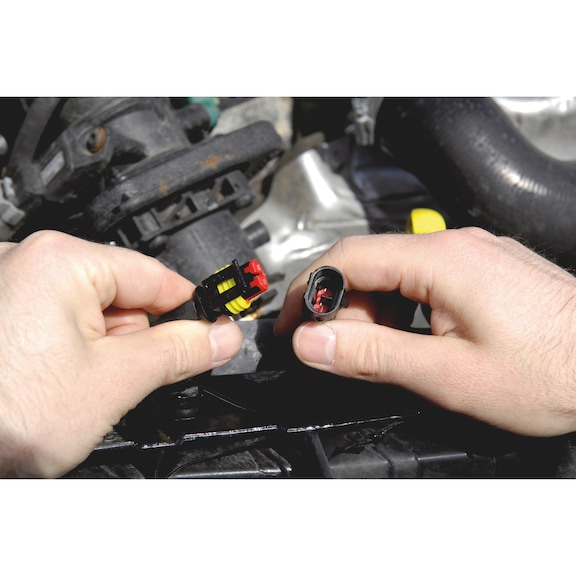

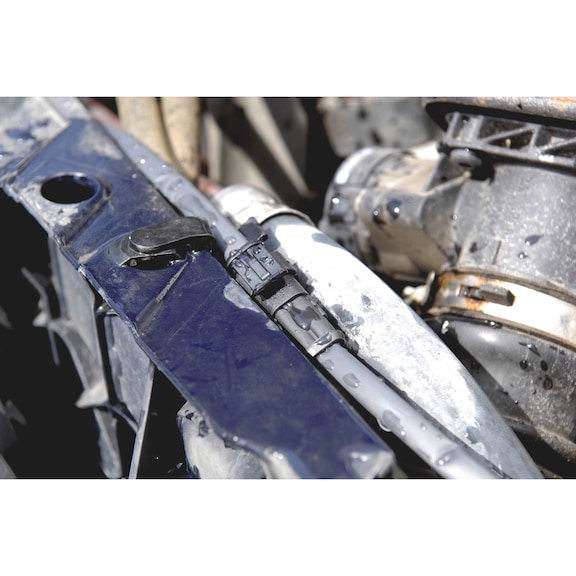

- Automotive electrical connections
- Industrial machinery wiring
- Outdoor electrical installations requiring waterproof connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical connections from water and dust ingress, reducing failure rates and electronic waste
- Durable materials extend product lifespan, minimizing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Waterproof Socket Housing TE Superseal 1.5 Series 4 PCS is available now for immediate purchase. Ideal for automotive, industrial, and outdoor electrical applications requiring robust waterproof connectors.
