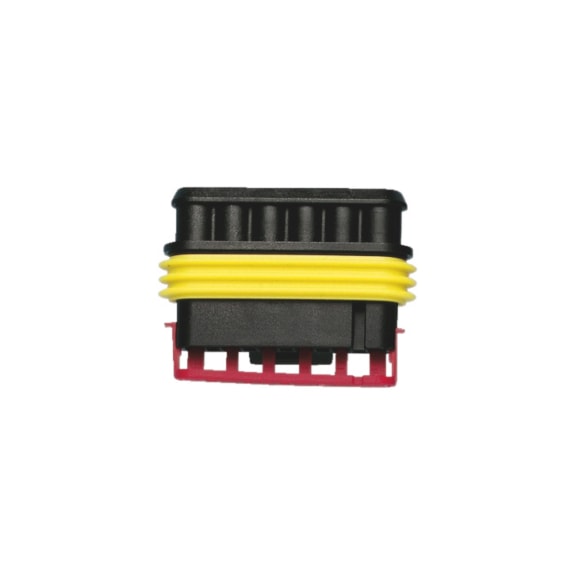

Waterproof Socket Housing TE Superseal 1.5 Series | IP67 Rated | Durable Polyamide Construction | @Pack of 4 | by Wurth
Waterproof socket housing TE Superseal 1.5 Series is designed for reliable electrical connections in automotive and industrial applications. With an IP67 rating for dust and water protection, this durable polyamide housing supports wire cross sections from 0.35 to 2.5 mm² and operates in extreme temperatures from -40 to 125 °C. Ideal for outdoor installations, it ensures long-lasting performance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Waterproof Socket Housing TE Superseal 1.5 Series | IP67 Rated | Durable Polyamide Construction | @Pack of 4 | by Wurth
Brand: Wurth
SKU: 5551036
Alternatively Known As: Waterproof electrical connector housing, TE Superseal socket, IP67 connector housing
Technical Specifications
- Number of electrical poles: 6 PCS
- Contact gauge: 1.5
- Min./max. wire cross section: 0.35-2.5 mm²
- IP protection class: IP67
- Max. nominal voltage: 24 V/DC
- Max. current: 14 A
- Min./max. temperature conditions: -40 to 125 °C
- Material: PA 6.6 - Polyamide
- Colour: Black
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- IP67 rated for dust and water ingress protection
- Complies with IEC 529 and DIN 40050 standards
- Durable polyamide (PA 6.6) material construction
- Suitable for wire cross sections from 0.35 to 2.5 mm²
- Supports up to 14 A current and 24 V/DC voltage
- Operates in temperature range from -40 to 125 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and electrical safety.
Applications
- Automotive electrical connections
- Industrial machinery wiring
- Outdoor electrical installations requiring waterproof connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides long-lasting protection reducing the need for frequent replacements
- Enhances electrical safety preventing environmental contamination and damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Waterproof Socket Housing TE Superseal 1.5 Series 4 PCS is available for immediate purchase, ideal for automotive and industrial waterproof electrical connections.
