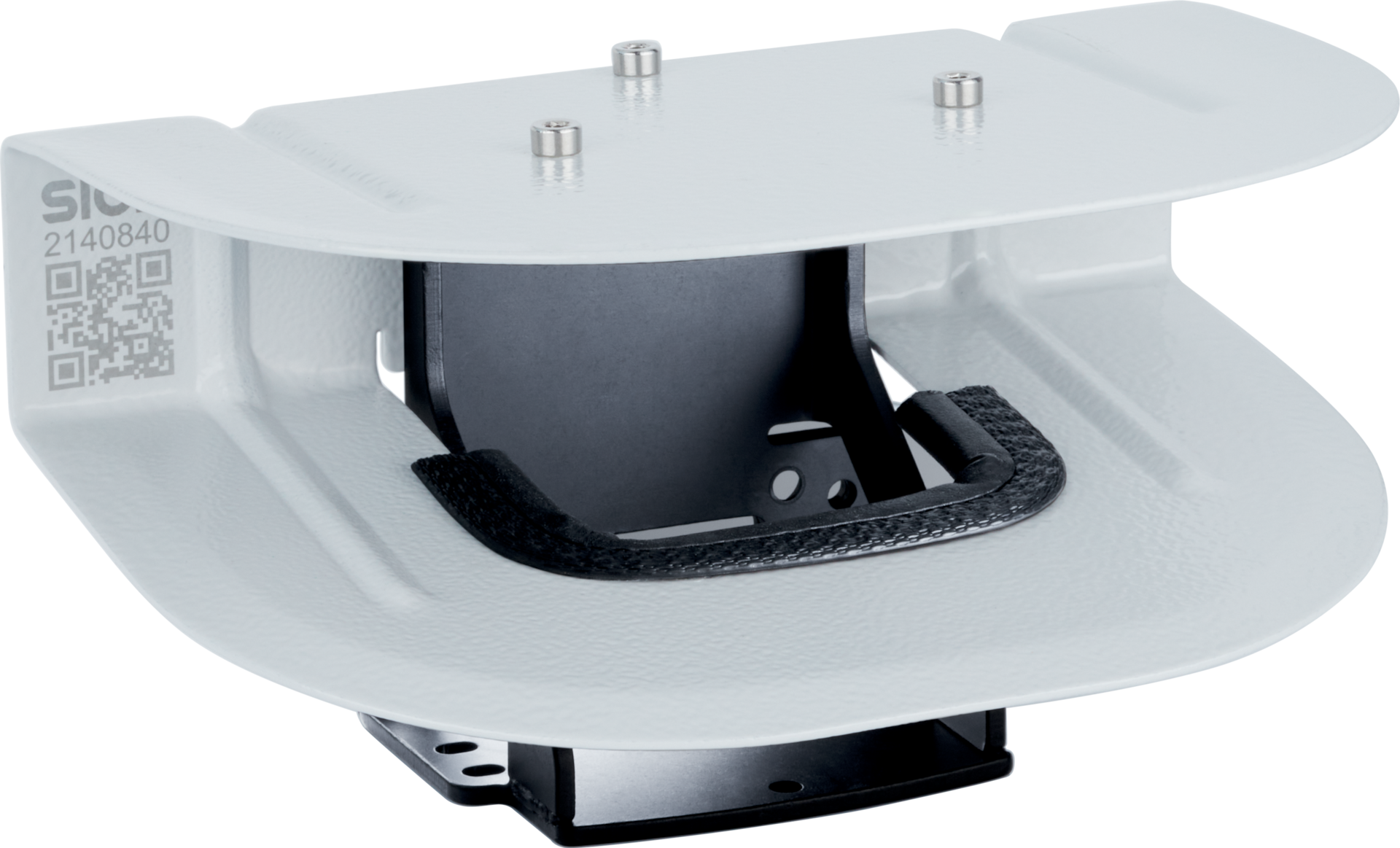

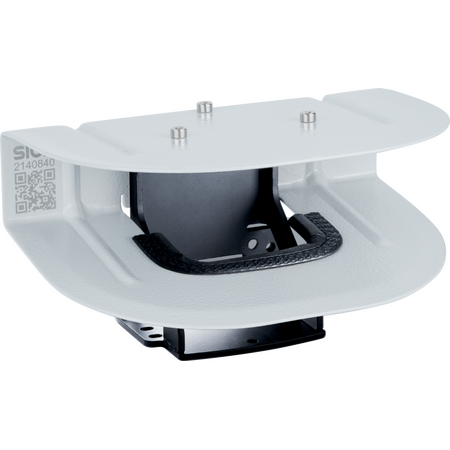

Weather Protected Mounting Bracket | Integrated 200° Weather Protection | Seawater-Resistant Aluminum | by SICK
The Weather Protected Mounting Bracket features an integrated 200° weather protection, making it ideal for mounting picoScan100 devices in industrial and outdoor environments. Crafted from seawater-resistant aluminum with a black anodized finish, it ensures durability against harsh conditions while providing high vibration and shock resistance for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Weather Protected Mounting Bracket, picoScan100 Mounting Bracket, Industrial Mounting Bracket with Weather Shield
Technical Specifications
- Material: Seawater-resistant aluminum bracket (3 mm, black anodized), weather protection attachment (1.5 mm, powder-coated RAL7035), stainless steel A2 screws
- Vibration resistance: 10 Hz to 1,000 Hz, 5 g, 4.24 g RMS, 10 frequency cycles, 5 hours
- Shock resistance: 50 g, 11 ms, ±3 single shocks/axis; 25 g, 6 ms, ±1,000 continuous shocks/axis; 50 g, 3 ms, ±5,000 continuous shocks/axis
- Mounting system type: Brackets
- Items supplied: Mounting bracket, 5 x M4x6 countersunk screws (DIN7991), 3 x M4x5 cylinder head screws
- Dimensions (H x L x W): 100.5mm x 120.3mm x 180mm
- Weight: 0.294 kg
Key Features
- Integrated weather protection with 200° opening angle
- Made from seawater-resistant aluminum with black anodized and powder-coated finishes
- Includes stainless steel A2 screws for secure mounting
- High vibration and shock resistance ensuring durability in demanding conditions
Professional Installation Requirements
- Professional installation recommended to ensure secure mounting and proper weather protection, especially in industrial or outdoor environments.
Applications
- Mounting picoScan100 devices in industrial environments
- Providing weather protection for sensitive equipment
- Suitable for outdoor and harsh environmental conditions
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Corrosion-resistant aluminum extends product lifespan, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK Mounting Bracket with integrated 200° weather protection is available for immediate purchase, ideal for industrial and outdoor applications requiring durable device mounting and protection.
