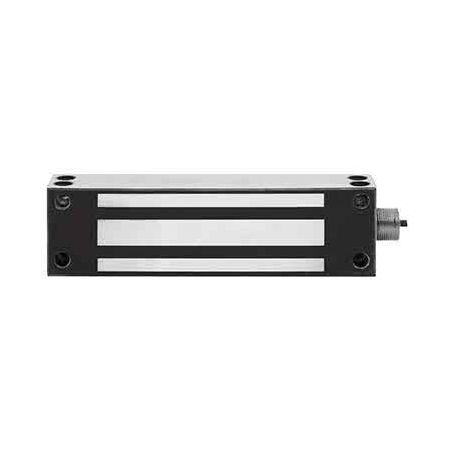

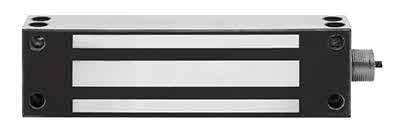

Weather Resistant Electromagnetic Lock | Monitored 12/24VDC | Fail-Safe Operation | Silent Design | by LOCKWOOD
The Weather Resistant Electromagnetic Lock is designed for outdoor and coastal doors, featuring a monitored 12/24VDC operation and fail-safe unlocking when power is removed. Ideal for wood, aluminum, and steel constructions, this lock ensures silent operation without humming or buzzing, making it perfect for secure environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Weather Resistant Electromagnetic Lock | Monitored 12/24VDC | Fail-Safe Operation | Silent Design | by LOCKWOOD
Brand: LOCKWOOD
SKU: 770600-310
Alternatively Known As: Weather Resistant Electromagnetic Lock, EMZ8-WSM Magnetic Lock, Outdoor Electromagnetic Door Lock
Technical Specifications
- Holding Force: Up to 580kg
- Voltage: Site selectable 12V or 24V DC
- Monitoring: Hall-Effect position sensors for lock status
- Operation: Fail-safe (unlocks when power is removed)
- Installation: Suitable for wood, aluminium, and steel constructions
- Silent operation with no humming or buzzing
- Dimensions (H x L x W): 50mm x 40mm x 250mm
- Weight: 3.5 kg
Key Features
- Fail-safe: unlocks when power is removed
- Easy installation: suitable for both new and retrofit usage
- Self-alignment: armature plate pivots to accommodate door drop
- Silent operation: no humming or buzzing
- Dual voltage: site selectable 12 or 24 Vdc
- Monitored versions: Hall-Effect status monitoring available
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper electrical connection and secure mounting.
Applications
- Outdoor / Exposed doors
- Doors located in coastal areas
- Suitable for wood, aluminium, and steel constructions
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable weather resistant design reduces need for frequent replacements, minimizing waste.
Warranty Information
5 years warranty.
Available Now
The LOCKWOOD EMZ8-WSM Electromagnetic Lock is available now for immediate purchase. Ideal for securing outdoor and coastal doors with reliable weather resistant performance.
