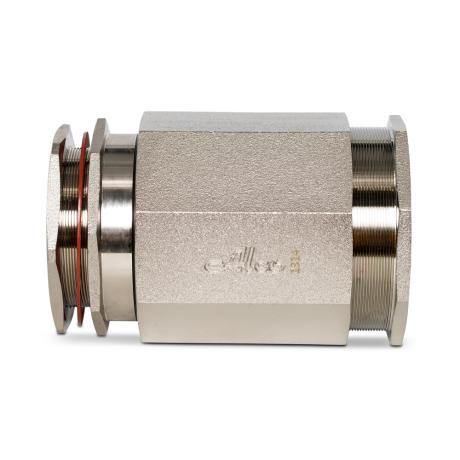

Weatherproof Armoured Cable Gland | 112-128mm Diameter | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster
The Weatherproof Armoured Cable Gland is designed for cable diameters ranging from 112-128mm, providing a secure seal to prevent water and dust ingress. With a high IP66/68 rating and a temperature range of -20°C to +80°C, this gland is perfect for industrial and commercial applications, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Weatherproof Armoured Cable Gland | 112-128mm Diameter | IP66/68 Rated | Brass & Nickel Plated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCAW120
Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, Nickel Plated Cable Gland
Technical Specifications
- Cable Diameter Range: 112-128mm
- Thread Length: 30mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Ingress Protection: IP66/68
- Temperature Range: –20°C to +80°C
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 50mm x 50mm x 130mm
- Weight: 0.5 kg
Key Features
- Weatherproof armoured cable gland suitable for cable diameters 112-128mm
- Temperature range from –20°C to +80°C
- Provides a secure seal on cable sheath to prevent ingress of water and dust
- High degree of protection rated IP66/68
- Includes locknut as standard for secure fitting
- Seal made from durable TPE material
- Constructed from brass with nickel plating for corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Industrial and commercial armoured cable installations
- Indoor and outdoor electrical wiring requiring weatherproof sealing
- Electrical conduit and cable protection in harsh environments
Standards & Compliance
- Complies with AS 1939-1990 for cable glands
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes risk of electrical faults and environmental damage
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Weatherproof Armoured Cable Gland for 112-128mm diameter cables is available for immediate purchase, ideal for industrial and commercial electrical installations requiring robust cable protection.
