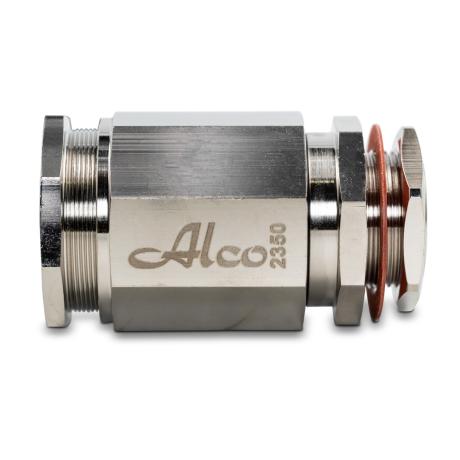

Weatherproof Armoured Cable Gland | IP66/68 Rated | Brass & Nickel Plated | 26-33.5mm Diameter | by Wattmaster
The Weatherproof Armoured Cable Gland is designed for cables with a diameter of 26-33.5mm, providing a secure seal to prevent water and dust ingress. Ideal for both indoor and outdoor electrical installations, this gland features a high IP66/68 rating and is constructed from durable brass with nickel plating for corrosion resistance. Perfect for industrial and commercial applications, it ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Weatherproof Armoured Cable Gland | IP66/68 Rated | Brass & Nickel Plated | 26-33.5mm Diameter | by Wattmaster
Brand: Wattmaster
SKU: ALCAW32
Alternatively Known As: Armoured Cable Gland, Weatherproof Cable Gland, Brass Cable Gland, IP66 Cable Gland
Technical Specifications
- Cable Diameter Range: 26-33.5mm
- Thread Length: 14mm
- Material: Brass, Nickel Plated
- Seal Material: TPE
- Temperature Range: –20°C to +80°C
- Ingress Protection: IP66/68
- Locknut: Supplied as standard
- Compliance: AS 1939-1990
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.15 kg
Key Features
- Weatherproof armoured cable gland suitable for harsh environments
- Temperature range from –20°C to +80°C
- Provides a secure seal on cable sheath to prevent ingress of water and dust
- High degree of protection with IP66/68 rating
- Locknut supplied as standard for secure fitting
- Seal made from durable TPE material
- Constructed from brass with nickel plating for corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper sealing and compliance with electrical safety standards.
Applications
- Indoor and outdoor electrical installations requiring armoured cable sealing
- Industrial and commercial electrical wiring protection
- Weatherproof cable entry points in electrical enclosures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life reducing waste
- Weatherproof design minimizes environmental damage from water ingress
- Supports safe and reliable electrical installations reducing risk of faults and energy loss
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Weatherproof Armoured Cable Gland for 26-33.5mm diameter cables is available for immediate purchase, ideal for industrial, commercial, and residential electrical installations requiring robust cable protection.
