Weatherproof LED Batten | IP65 Rated | 147 lm/W Efficiency | DALI Compatible | by Ektor

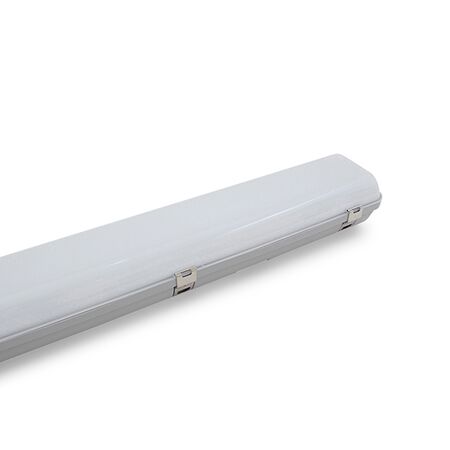

The UMBRA PRO 1200mm Weatherproof LED Batten is designed for both outdoor and indoor applications, featuring an impressive efficiency of up to 147 lm/W and an IP65 rating for dust and water protection. Ideal for commercial and industrial environments, this batten light includes a DALI DT6 driver for flicker-free dimming and a microwave sensor option for enhanced control, ensuring reliable performance in any setting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Weatherproof LED Batten, Outdoor LED Batten Light, IP65 LED Batten, Emergency LED Batten, DALI LED Batten
Technical Specifications
- Total system efficiency up to 147 lm/W
- IP65 rated enclosure for dust and water protection
- IK08 impact resistance rating
- Operating temperature range -20 to 40 °C (standard), 0 to 40 °C (emergency models)
- Input voltage 230Vac with tolerance -6%/+10%
- Power factor 0.95
- Maximum wattage 33 W for 1200mm models
- LED voltage 36 V for 1200mm models
- LED current 850 mA for 1200mm models
- Colour temperature 4000 K
- Colour rendering index (CRI) >84
- 3-step MacAdam ellipse colour consistency
- DALI DT6 LED driver with wireless IEC62386-104 support
- Inbuilt mains rated DALI switch input supporting IEC62386-301, 302, 303
- Maintained emergency mode with 90 minutes duration and 700 lm emergency output
- Microwave sensor with 10 m detection range and DALI 2 communication
- Standby power 0.3 W
- Short Term Light Modulation (PstLM) <1.0
- Stroboscopic Visibility Measure (SVM) <0.4
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 147 lm/W
- IP65 rated for weatherproof protection
- IK08 impact resistance
- Surface mount installation
- DALI DT6 LED driver with flicker-free dimming
- Inbuilt mains rated DALI switch input
- Wireless IEC62386-104 support with DT6
- Microwave sensor option with DALI-2 support
- Maintained emergency mode with 90 minutes duration
- Long LED lifetime over 102,000 hours
- Power factor of 0.95
- Colour rendering index (CRI) >84
- 3-step MacAdam ellipse for colour consistency
- Standby power as low as 0.3 W
- DALI device type 51 power monitoring
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with DALI control systems and emergency lighting standards to ensure compliance and safety.
Applications
- Outdoor and indoor weatherproof lighting
- Commercial and industrial environments
- Emergency and sensor-controlled lighting applications
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS 4268 – EMC for Lighting Equipment
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- IEC 62386-102, 103, 104 – DALI Control Gear and Systems
- AS 60598.2.22 – Emergency Luminaires
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Low standby power reduces unnecessary energy use
- DALI power monitoring enables energy management and optimization
Warranty Information
Standard manufacturer warranty applies. Please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 1200mm Weatherproof LED Batten is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications requiring robust weatherproof and sensor-controlled lighting.
