Weatherproof LED Batten | IP65 Rated | DALI DT6 Driver | 2400 Lumens | by Ektor

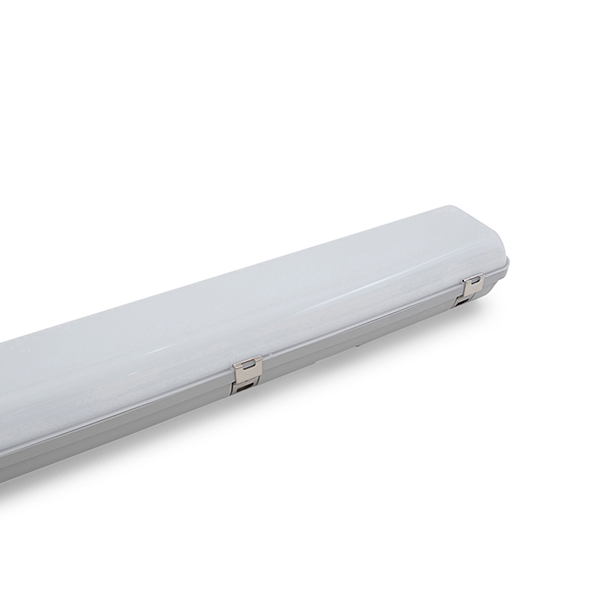

The UMBRA PRO 600mm Weatherproof LED Batten is designed for both indoor and outdoor applications, featuring an IP65 rating for water resistance and IK08 impact protection. With a powerful output of 2400 lumens and a DALI DT6 driver for flicker-free dimming, this batten is perfect for commercial and emergency lighting needs, ensuring reliability and efficiency in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Weatherproof LED Batten, IP65 LED Batten Light, Surface Mount LED Batten, Emergency LED Batten, DALI LED Batten
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: -20 to 40 °C (standard), 0 to 40 °C (emergency models)
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Maximum Wattage: 20 W (600mm models)
- Luminaire Lumens: 2400 lm (600mm models)
- Colour Temperature: 4000 K
- Colour Rendering Index (CRI): >84
- LED Lifetime: >102000 hours
- Driver Type: DALI DT6 LED Driver
- Dimmable: Yes
- Wiring Type: Re-wireable terminal block (6 pin)
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 350 lm (600mm emergency models)
- Sensor Type: Microwave (optional)
- Sensor Detection Range: 10 m
- Short Term Light Modulation (PstLM): ≤1.0
- Stroboscopic Visibility Measure (SVM): ≤0.4
- Dimensions (H x L x W): 70mm x 600mm x 600mm
- Weight: 1.5 kg
Key Features
- IP65 rated weatherproof and IK08 impact resistant
- Polycarbonate body and diffuser for durability
- DALI DT6 LED driver with flicker-free dimming
- Inbuilt mains rated DALI switch input
- Microwave sensor option with DALI-2 support
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 147 lm/W
- Colour rendering index (CRI) >84 with 4000K CCT
- Long LED lifetime >102000 hours
- Power factor 0.95 and standby power 0.3W
- DALI device type 51 power monitoring included
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Outdoor and indoor surface mounting
- Commercial and industrial lighting
- Emergency lighting applications
- DALI-2 compliant control systems
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS CISPR 15
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- High energy efficiency reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Low standby power consumption
- DALI power monitoring enables energy management
Warranty Information
Standard manufacturer warranty applies. Please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 600mm Weatherproof LED Batten is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
