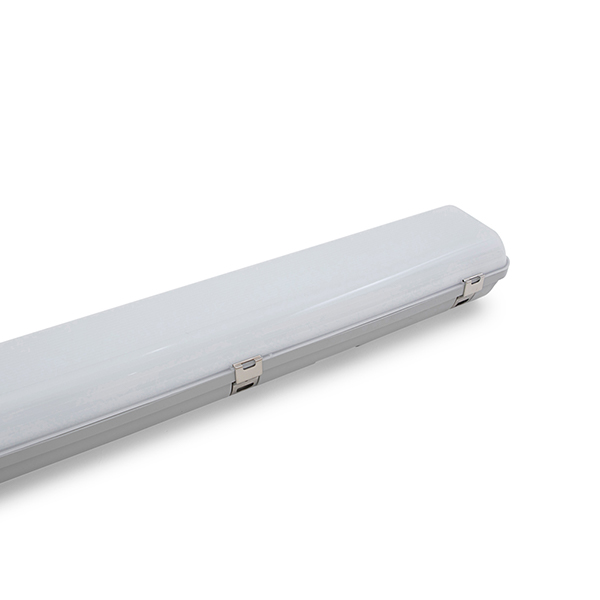

Weatherproof LED Batten with Sensor | IP65 Rated | 147 lm/W Efficiency | DALI DT6 Driver | by Ektor
The Weatherproof LED Batten with Sensor is designed for both indoor and outdoor applications, featuring an IP65 rating for dust and water resistance. With a high efficiency of up to 147 lm/W and a durable polycarbonate body, this batten is perfect for commercial and industrial lighting needs. The integrated microwave sensor enhances energy efficiency, making it an ideal choice for emergency lighting with maintained mode.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Weatherproof LED Batten Light, LED Batten with Sensor, IP65 LED Batten, Emergency LED Batten Light
Technical Specifications
- Total system efficiency up to 147 lm/W
- IP65 rated enclosure for dust and water resistance
- IK08 impact resistance rating
- Operating temperature range -20 to 40 °C (standard), 0 to 40 °C (emergency models)
- Input voltage 230Vac with tolerance -6%/+10%
- Power factor 0.95
- Maximum wattage 33 W for 1200mm models
- Colour temperature 4000 K
- Colour Rendering Index (CRI) >84
- LED voltage 36 V for 1200mm models
- LED current 850 mA for 1200mm models
- LED lifetime >102,000 hours (TM-21 report)
- DALI DT6 LED driver with dimmable and power monitoring features
- Microwave sensor with DALI-2 communication and adjustable settings
- Emergency maintained mode with 90 minutes duration and monitored via DALI
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 147 lm/W
- IP65 rated for weatherproof protection
- IK08 impact resistance
- Polycarbonate body and diffuser for durability
- Inbuilt mains rated DALI switch for control
- DALI DT6 LED driver with flicker-free dimming
- Microwave sensor with 10m detection range and DALI-2 communication
- Maintained emergency mode with 90 minutes duration
- Long LED lifetime over 102,000 hours
- Adjustable sensor settings including hold time and standby levels
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Outdoor and indoor surface mounting
- Commercial and industrial lighting
- Emergency lighting with maintained mode
- Sensor-controlled lighting for energy efficiency
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS 4268 – EMC for Lighting Equipment
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- IEC 62386-102, IEC 62386-103, IEC 62386-104 – DALI Control Protocols
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI control and sensor integration optimize energy use
- Low standby power consumption
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 1200mm Weatherproof LED Batten with Sensor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
