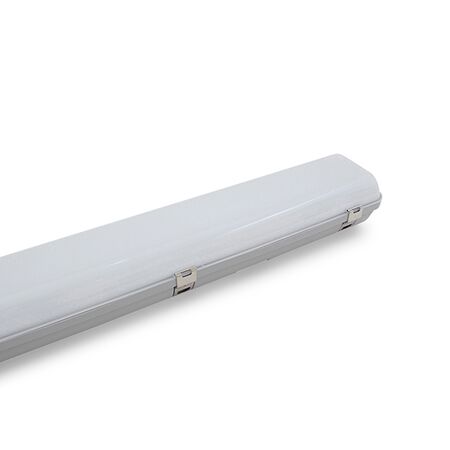

Weatherproof LED Batten with Sensor | IP65 Rated | 2400 Lumens | DALI DT6 Driver | by Ektor
The Weatherproof LED Batten with Sensor is designed for both indoor and outdoor applications, featuring an IP65 rating and a powerful output of 2400 lumens. Ideal for commercial and industrial lighting, this batten includes a DALI DT6 driver for flicker-free dimming and a microwave sensor for energy-efficient operation. With a long LED lifetime of over 102,000 hours, it ensures reliable performance and reduced maintenance costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Weatherproof LED Batten Light, Sensor LED Batten, Emergency LED Batten, Surface Mount LED Batten
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Operating Temperature Range: -20 to 40 °C (standard), 0 to 40 °C (emergency models)
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Maximum Wattage: 20 W
- System Max Wattage: 17-20 W depending on model
- Colour Rendering Index (CRI): >84
- Colour Temperature: 4000 K
- LED Voltage: 24 V
- LED Current: 650 mA
- LED Lifetime: >102,000 hours
- Luminaire Lumens: 2400 lm
- Driver Type: DALI DT6 LED Driver with DALI-2 support
- Dimmable: Yes
- Wiring Type: Re-wireable terminal block (6 pin)
- Sensor Type: Microwave with 10 m detection range
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 350 lm
- Emergency Control: DALI Monitored with wireless test support
- Dimensions (H x L x W): 70mm x 80mm x 600mm
- Weight: 1.5 kg
Key Features
- IP65 rated weatherproof and IK08 impact resistant
- High system efficiency up to 142 lm/W
- DALI DT6 LED driver with flicker-free dimming
- Inbuilt DALI-2 sensor with microwave detection and corridor function
- Maintained emergency lighting with 90 minutes duration
- Adjustable sensor settings including hold time and standby levels
- Power factor of 0.95 and low standby power consumption
- Long LED lifetime over 102,000 hours
- Surface mount installation with grey polycarbonate body and diffuser
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Outdoor and indoor surface mounting
- Commercial and industrial lighting
- Emergency lighting with maintained mode
- Sensor-controlled lighting for energy efficiency
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS CISPR 15
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS 60598.2.22
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- High energy efficiency reduces power consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- DALI-2 sensor integration enables smart lighting control to save energy
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 600mm Weatherproof LED Batten with Sensor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
