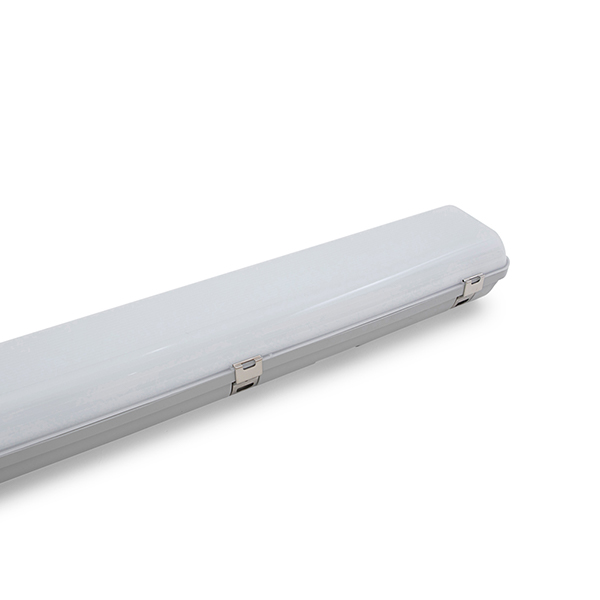

Weatherproof LED Emergency Batten | IP65 Rated | 147 lm/W Efficiency | DALI Compatible | by Ektor
The Weatherproof LED Emergency Batten is designed for reliable outdoor and indoor lighting, featuring an IP65 rating for dust and water protection and an impressive efficiency of up to 147 lm/W. Ideal for commercial and industrial applications, this batten includes a DALI DT6 LED driver for seamless integration into smart lighting systems, ensuring safety and energy efficiency in emergency situations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Weatherproof LED Emergency Batten, IP65 LED Emergency Light, Surface Mount LED Emergency Batten, DALI Emergency LED Batten
Technical Specifications
- Total system efficiency up to 147 lm/W
- IP65 rated enclosure for dust and water protection
- IK08 impact resistance rating
- Operating temperature range -20 to 40 °C (standard), 0 to 40 °C (emergency models)
- Input voltage 230Vac (216-253Vac range)
- Power factor 0.95
- Maximum wattage 33 W for 1200mm models
- Colour temperature 4000 K
- Colour rendering index (CRI) >84
- LED lifetime >102,000 hours (TM-21 report)
- DALI DT6 LED driver with wireless IEC62386-104 support
- Maintained emergency mode with 90 minutes duration
- Emergency lumen output 700 lm for 1200mm models
- Inbuilt mains rated DALI switch input supporting IEC62386-301/302/303
- Microwave sensor option with adjustable hold time and detection area
- Dimensions (H x L x W): 80mm x 1200mm x 70mm
- Weight: 3.5 kg
Key Features
- High system efficiency up to 147 lm/W
- IP65 rated for weatherproof protection
- IK08 impact resistance
- Polycarbonate body and diffuser for durability
- DALI DT6 LED driver with flicker-free dimming
- Inbuilt mains rated DALI switch input
- Maintained emergency mode with 90 minutes duration
- Wireless and DALI monitored emergency test and monitoring
- Microwave sensor option with DALI-2 compliant control
- Long LED lifetime >102,000 hours
- Colour rendering index (CRI) >84
- Constant current driver mode with power factor 0.95
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical and safety standards.
Applications
- Outdoor and indoor weatherproof lighting
- Emergency lighting in commercial and industrial buildings
- Surface mount installations requiring IP65 rated luminaires
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 2293.3
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring supports energy management
- Low standby power consumption reduces energy waste
Warranty Information
Warranty information not specified; please contact manufacturer for details.
Available Now
The Ektor UMBRA PRO 1200mm Weatherproof LED Emergency Batten is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
