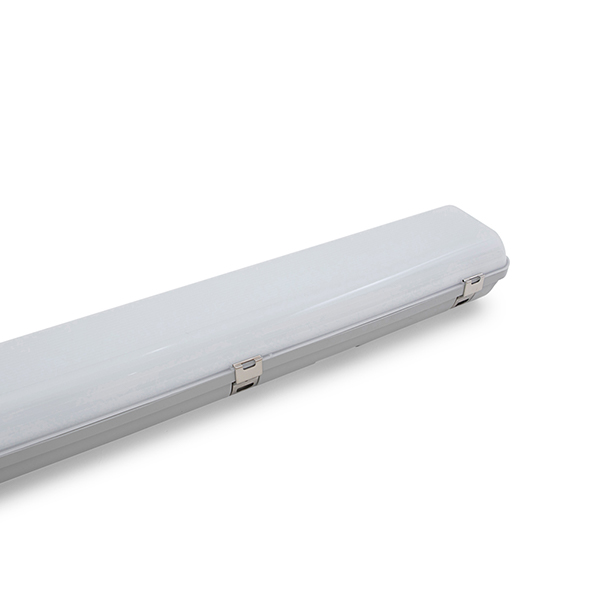

Weatherproof LED Emergency Batten | IP65 Rated | 90 Min Emergency Duration | 2400 Lumens | by Ektor
The Weatherproof LED Emergency Batten is designed for reliable emergency lighting in both indoor and outdoor settings. With an IP65 rating and IK08 impact resistance, it ensures durability in harsh environments. This batten features a maintained emergency mode providing 90 minutes of illumination and a high efficiency of up to 142 lm/W, making it ideal for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Weatherproof LED Emergency Batten, IP65 LED Emergency Light, Outdoor Emergency LED Batten, Ektor UMBRA PRO Emergency Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Operating Temperature: -20 to 40 °C (standard), 0 to 40 °C (emergency models)
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Maximum Wattage: 20 W
- System Max Wattage: 20 W
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- Colour Temperature: 4000 K
- LED Voltage: 24 V
- LED Current: 650 mA
- LED Lifetime: >102000 hours
- Luminaire Lumens: 2400 lm
- Driver Type: DALI DT6 LED Driver
- Dimmable: Yes
- Wiring Type: Re-wireable terminal block (6 pin)
- Driver Mode: Constant Current
- Power Monitoring: DALI Device type 51
- Emergency Duration: 90 mins
- Emergency Lumen Output: 350 lm
- Emergency Output Power: 1900 mW
- Sensor Type (optional): Microwave with DALI 2 communication
- Dimensions (H x L x W): 70mm x 80mm x 600mm
- Weight: 1.5 kg
Key Features
- IP65 rated weatherproof and IK08 impact resistant
- High system efficiency up to 142 lm/W
- Maintained emergency mode with 90 minutes duration
- DALI DT6 LED driver with dimmable and power monitoring features
- Inbuilt mains rated DALI switch input for control
- Microwave sensor option with DALI-2 compliant control
- Long LED lifetime over 102,000 hours
- Grey polycarbonate body and diffuser
- Operating temperature range from -20 to 40 °C
- Emergency lumen output 350 lm
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical and safety standards.
Applications
- Outdoor and indoor emergency lighting
- Commercial and industrial buildings
- Weatherproof and vandal-resistant environments
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General requirements
- AS/NZS 60598.2.1 – Luminaires Particular requirements
- AS/NZS 2293.3 – Emergency escape lighting and exit signs
- AS/NZS 61347.1 – Lamp control gear General and safety requirements
- AS/NZS 61347.2.13 – Particular requirements for LED modules
- AS/NZS 4268 – EMC requirements for lighting equipment
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics
- IEC 62386-102, IEC 62386-103, IEC 62386-104 – DALI control gear standards
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring supports energy management and optimization
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 600mm Weatherproof LED Emergency Batten is available for immediate purchase, ideal for commercial, industrial, and outdoor emergency lighting applications.
