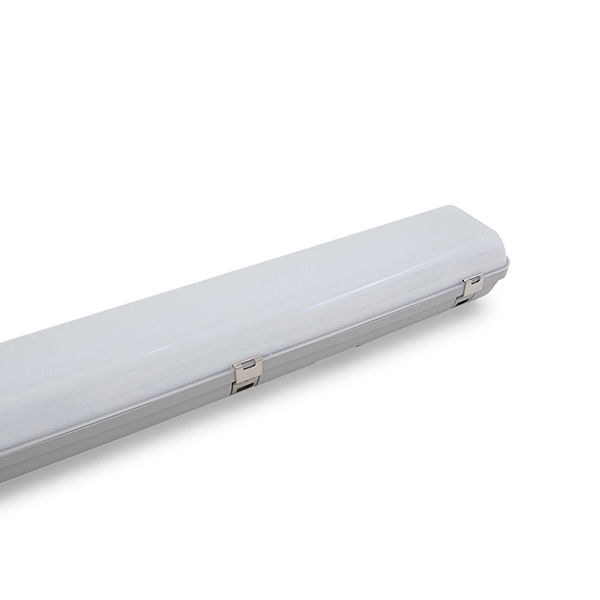

Weatherproof LED Emergency Batten with Sensor | IP65 Rated | 147 lm/W Efficiency | DALI DT6 Driver | by Ektor
The Weatherproof LED Emergency Batten with Sensor is designed for reliable emergency lighting in commercial and industrial settings. With an impressive efficiency of up to 147 lm/W and an IP65 rating, it ensures durability and performance in various environments. Ideal for pathways, corridors, and outdoor areas, this batten features a DALI DT6 driver for dimming and power monitoring, making it a smart choice for energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Weatherproof Emergency LED Batten, DALI Emergency LED Batten, Sensor LED Emergency Light, IP65 Emergency Batten
Technical Specifications
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 3.5 kg
Key Features
- High system efficiency up to 147 lm/W
- IP65 rated weatherproof and IK08 impact resistant
- Surface mount installation with grey polycarbonate body and diffuser
- DALI DT6 LED driver with dimmable and power monitoring features
- Inbuilt DALI-2 compliant microwave sensor with adjustable settings
- Maintained emergency mode with 90 minutes duration
- Emergency lumen output of 700 lm for 1200mm model
- Long LED lifetime over 102,000 hours
- Operating temperature range from -20 to 40 °C
- Low standby power consumption (0.3 W)
- Supports wireless test and monitoring compliant with IEC62386-104
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration with DALI control systems.
Applications
- Outdoor and indoor emergency lighting
- Commercial and industrial buildings
- Warehouses and parking areas
- Pathways and corridors requiring emergency illumination
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Part 2.1: Particular Requirements for Fixed General Purpose Luminaires
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS 4268 – EMC for Lighting Equipment
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- IEC 62386-102, 103, 104 – DALI Control Gear and Systems
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product and LED lifetime reduces waste and replacement frequency
- DALI power monitoring enables energy management and optimization
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty terms.
Available Now
The Ektor UMBRA PRO 1200mm Weatherproof LED Emergency Batten with Sensor is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
