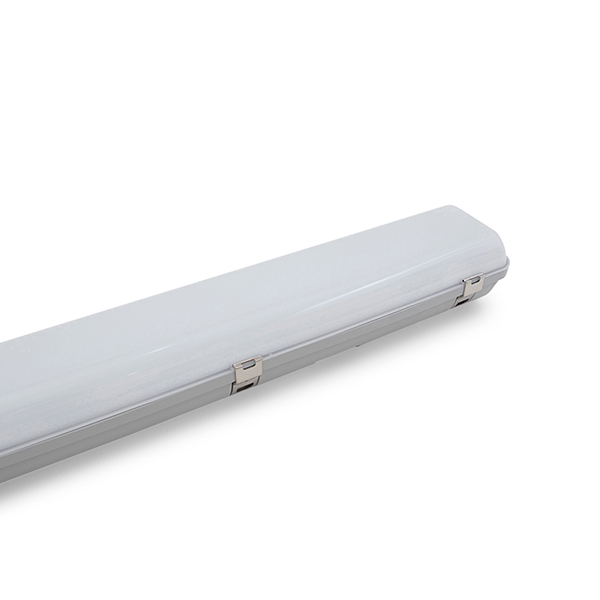

Weatherproof LED Emergency Batten with Sensor | IP65 Rated | 90 Min Emergency Duration | DALI-2 Compliant | by Ektor
The Weatherproof LED Emergency Batten with Sensor is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating and IK08 impact resistance, it ensures durability in harsh environments. Featuring a maintained emergency mode with a 90-minute duration and integrated microwave sensor, this batten is perfect for corridors, stairwells, and exit routes, providing peace of mind during power outages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Weatherproof LED Emergency Batten, LED Emergency Light with Sensor, Surface Mount Emergency LED Batten, IP65 Emergency LED Batten
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C (emergency models), -20 to 40 °C (non-emergency models)
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Maximum Wattage: 20 W (600mm models)
- System Max Wattage: 20 W (600mm models)
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- Colour Temperature: 4000 K
- LED Voltage: 24 V (600mm models)
- LED Current: 650 mA (600mm models)
- LED Lifetime: >102000 hours (TM-21 report)
- Luminaire Lumens: 2400 lm (600mm models)
- Driver Type: DALI DT6 LED Driver, DALI-2 compliant
- Dimmable: Yes
- Wiring Type: Re-wireable terminal block (6 pin)
- Driver Mode: Constant Current
- Power Monitoring: DALI Device type 51
- Sensor Type: Microwave with 10 m detection range
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 350 lm (600mm models)
- Emergency Output Power: 1900 mW (600mm models)
- Product Design Life: 12 years
- Dimensions (H x L x W): 70mm x 600mm x 600mm
- Weight: 2.5 kg
Key Features
- IP65 rated weatherproof and IK08 impact resistant polycarbonate body
- Integrated microwave sensor with DALI-2 compliant control system support
- Maintained emergency mode with 90 minutes duration and DALI monitored emergency control
- High system efficiency up to 142 lm/W
- Dimmable DALI DT6 LED driver with power monitoring
- Colour rendering index (CRI) greater than 84 with 4000K colour temperature
- Long LED lifetime over 102,000 hours (TM-21 report)
- Surface mount installation with grey polycarbonate diffuser and fitting
- Supports wireless test and monitoring over IEC62386-104
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical and safety standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting requiring weatherproof emergency lighting
- Outdoor and indoor surface mount installations
- Emergency lighting in corridors, stairwells, and exit routes
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Part 2.1: Particular Requirements - Fixed General Purpose Luminaires
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS 4268 – Control Gear for LED Modules
- AS/NZS 60598.2.22 – Luminaires Part 2.22: Particular Requirements - Emergency Luminaires
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High efficiency LED technology reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring enables energy management and optimization
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 600mm Weatherproof LED Emergency Batten with Sensor is available now for immediate purchase. Ideal for commercial and industrial emergency lighting applications requiring robust, weatherproof, and sensor-integrated LED luminaires.
