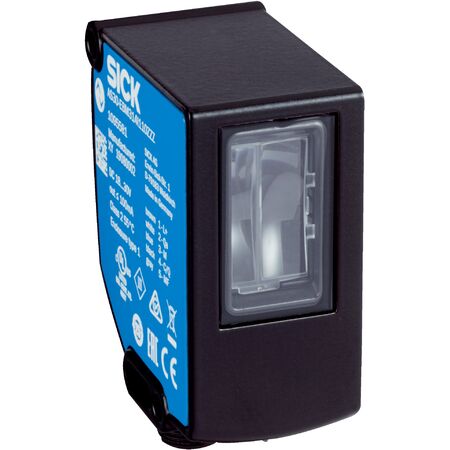

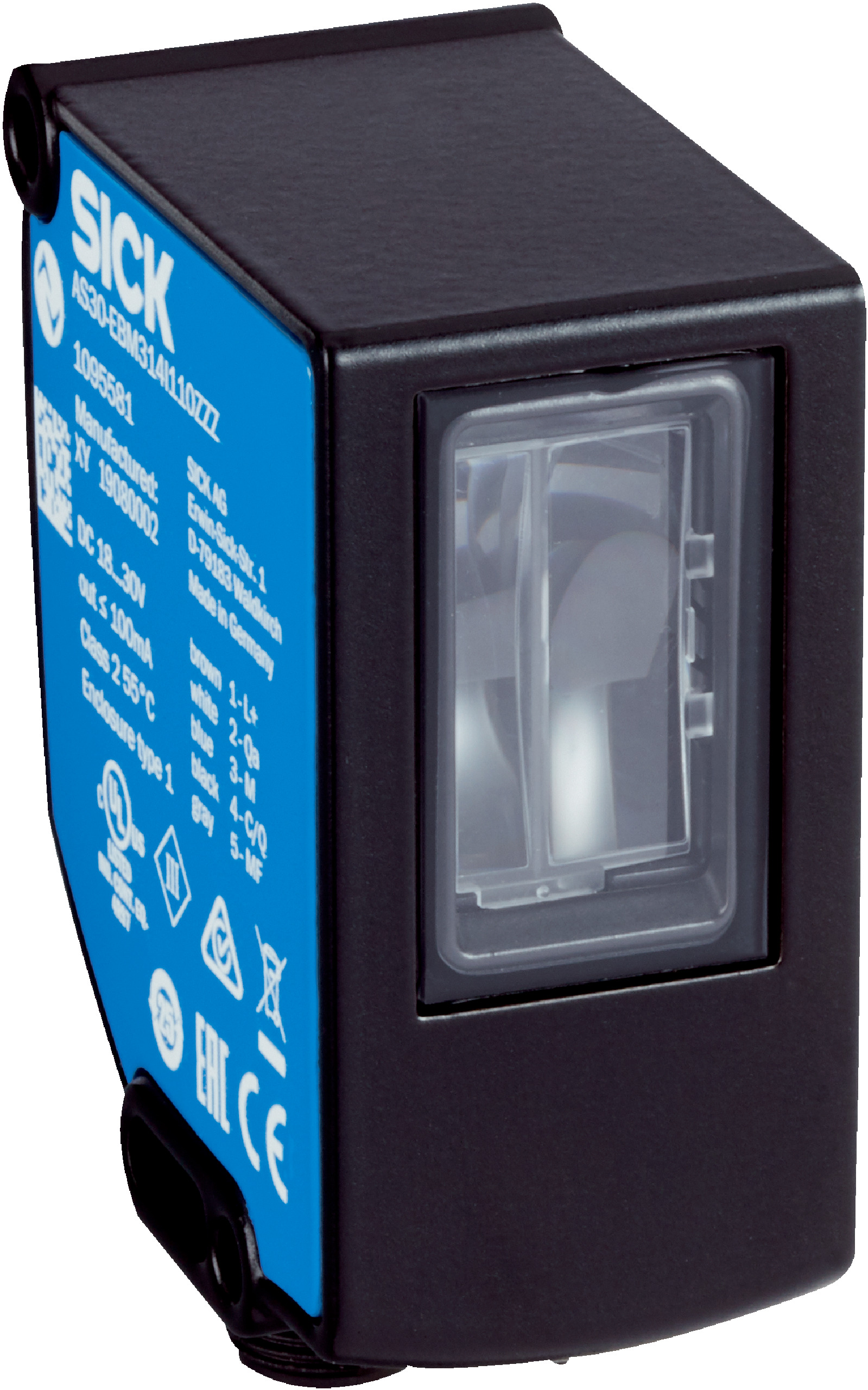

Web Guiding Sensor AS30-EBM544I220A00 | Reflector Mode | High Resolution 10 µm | IP67 Rated | by SICK
The Web Guiding Sensor AS30-EBM544I220A00 is designed for precise web guiding and positioning in industrial automation. With a sensing distance of up to 250 mm and a high resolution of 10 µm, it ensures accurate measurements and edge detection. Built for robust performance, this sensor features an IP67 enclosure rating, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Reflector mode
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 250 mm
- Working range: 240 mm to 260 mm
- Measurement range: 50 mm
- Minimum detectable object: 0.5 mm
- Light source: LED, White
- Wavelength: 400 nm to 700 nm
- Light spot size: 150 mm x 25 mm
- Repeatability: 0.05 mm
- Linearity (position value): ± 2%
- Resolution: 10 µm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 100 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate of analog output: 5 ms
- Output current max: < 100 mA
- Initialization time: 0.48 s
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Anti-reflex coating
- Ambient operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Reflector mode sensor principle for accurate web guiding and positioning
- Working range of 240 mm to 260 mm with sensing distance up to 250 mm
- High resolution of 10 µm and repeatability of 0.05 mm
- LED white light source with wavelength range 400 nm to 700 nm
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- IO-Link communication interface for easy integration and configuration
- Robust zinc diecast housing with IP67 enclosure rating
- Protection against reverse polarity, short-circuit, and interference pulses
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Web guiding and positioning in industrial automation
- Precision measurement and edge detection in manufacturing processes
- Use in environments requiring robust sensor performance with IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing extends product life, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AS30-EBM544I220A00 sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
