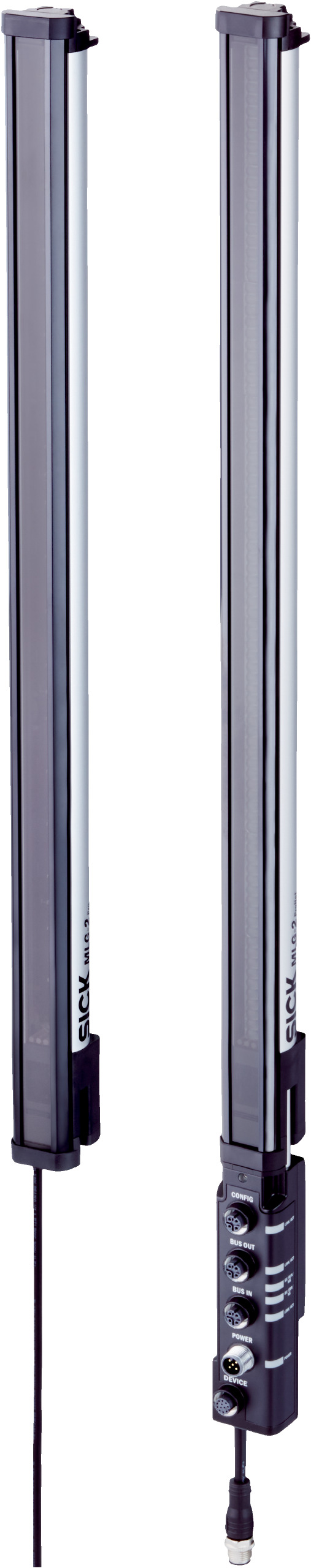

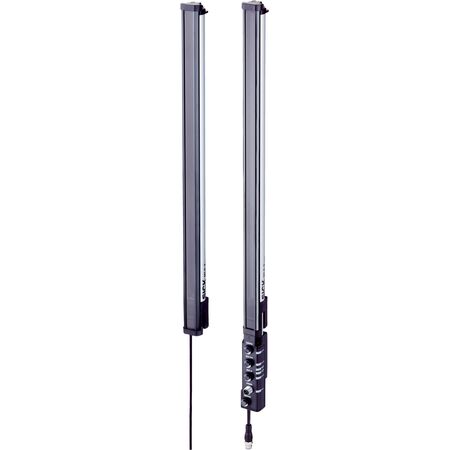

Web Guiding Sensor MLG05W-0100N12503 | High Resolution 0.1 mm | IP65 & IP67 Protection | by SICK
The MLG05W-0100N12503 Web Guiding Sensor is designed for high precision in industrial automation, featuring a high resolution of 0.1 mm and a robust aluminum housing with IP65 and IP67 protection. Ideal for measurement and monitoring in manufacturing lines, this sensor ensures accurate object detection with a fast cycle time of 32 µs per beam, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 229mm x 31mm x 34mm
- Weight: 0.56 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution mode with 0.1 mm resolution
- 30 beams with total measuring field width of 145 mm
- Repeatability of 6 µm and accuracy of ± 0.3 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source at 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper setup and calibration.
Applications
- Web guiding for high precision industrial processes
- Measurement and monitoring in manufacturing lines
- Automation systems requiring accurate object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MLG05W-0100N12503 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
