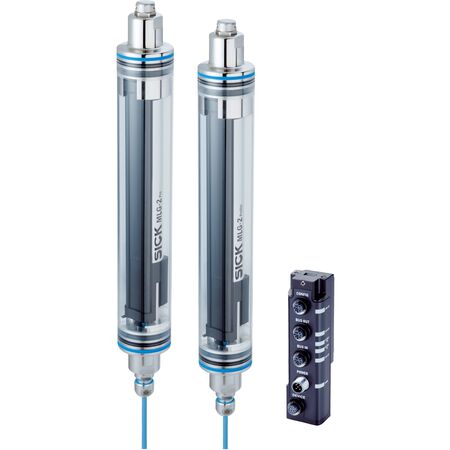

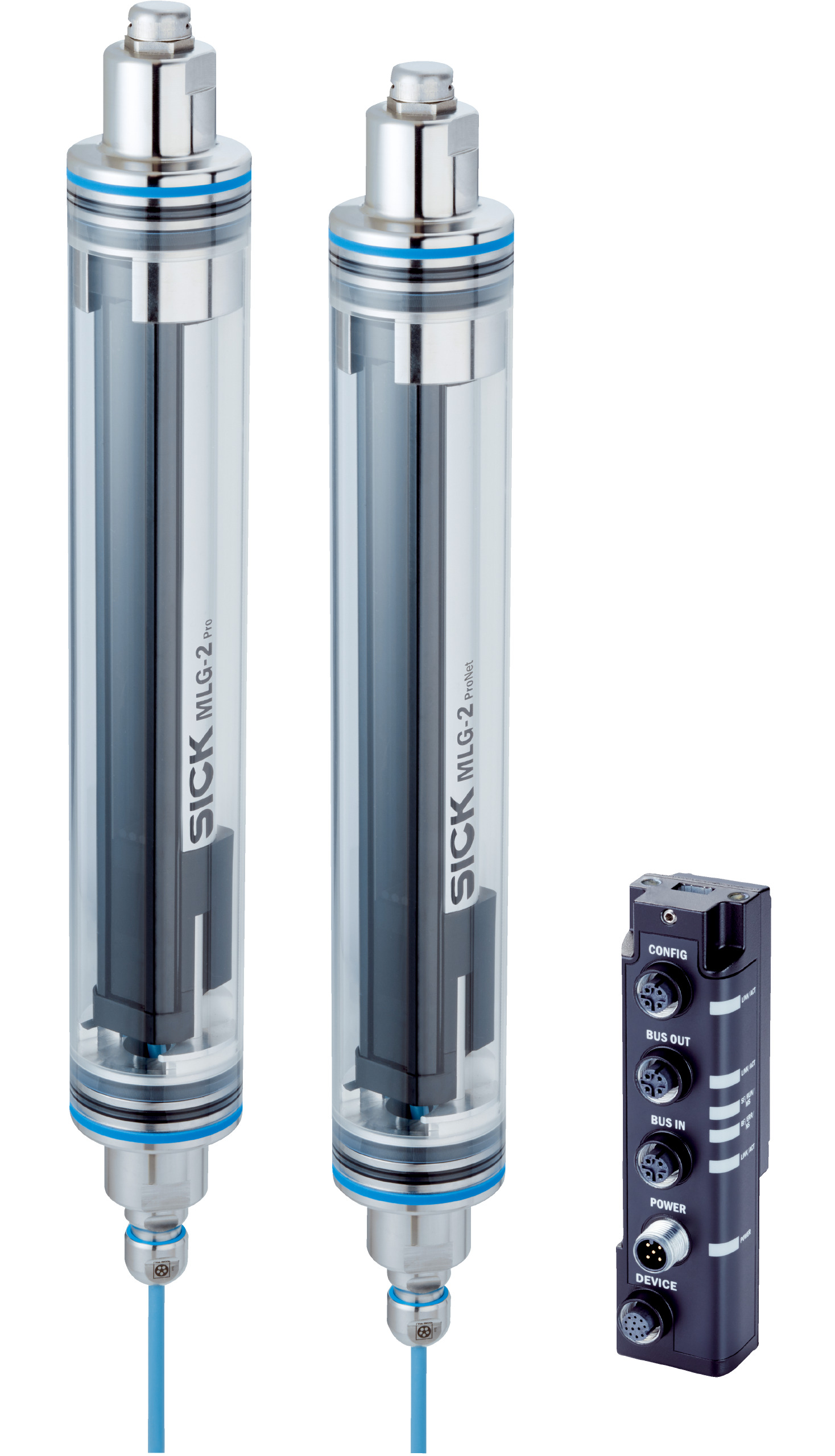

Web Guiding Sensor MLG05W-0100N52501 | 0.1 mm Resolution | IP69K Rated | by SICK
The Web Guiding Sensor MLG05W-0100N52501 is designed for precision measurement and control in industrial automation. With a high resolution of 0.1 mm and a repeatability of 6 µm, it ensures accurate web guiding. Featuring 30 beams and a robust IP69K rated housing, this sensor is perfect for quality control in material handling and processing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 30
- Total measuring field width: 145 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 56.5 mA
- Power consumption receiver: 126 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin, 1.4 m
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Display: LED
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 7.1 ms
- Digital output: 1 (Q1)
- Shock resistance: Continuous shocks 10 g, 16 ms; Single shocks 15 g, 11 ms
- Vibration resistance: Sinusoidal oscillation 10-150 Hz, 5 g
- Ambient light immunity: 100,000 lx
- Operating temperature: –20 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 380mm x 50mm x 50mm
- Weight: 0.559 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 30 beams with a total measuring field width of 145 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- Robust IP69K rated protective housing
- Push-pull PNP/NPN switching output
- Cable synchronization type
- Includes sender, receiver, fieldbus module, mounting instructions, and quick start guide
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and compliant with local electrical standards.
Applications
- Web guiding in industrial automation
- Precision measurement and control in manufacturing processes
- Quality control in material handling and processing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K housing extends product life and reduces waste
- Supports precise control to minimize material waste in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MLG05W-0100N52501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision web guiding applications.
