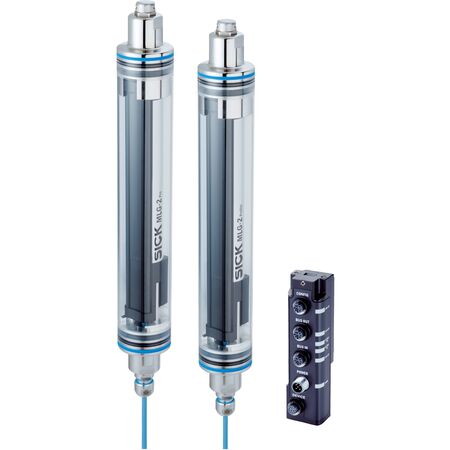

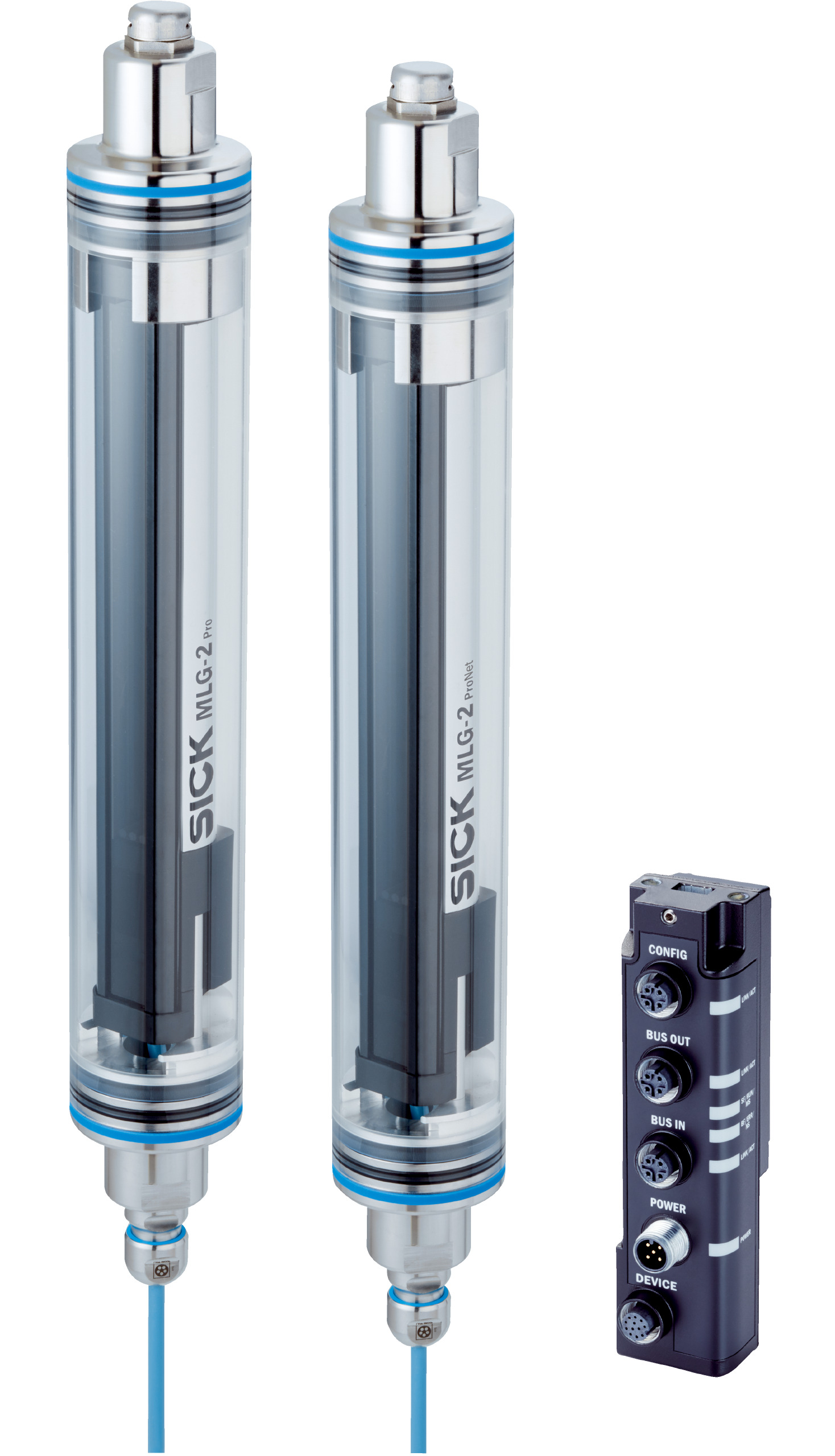

Web Guiding Sensor MLG05W-0200H52501 | 60 Beams & 0.1 mm Resolution | IP69K Rated | by SICK
The Web Guiding Sensor MLG05W-0200H52501 is designed for precision measurement and control in industrial automation. With a sender/receiver principle, it features 60 beams, 0.1 mm resolution, and ±0.3 mm accuracy, making it ideal for quality control in material handling. Its robust aluminum and stainless steel housing ensures durability, while the IP69K rating provides protection against harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 60
- Total measuring field width: 295 mm
- Light source: LED, Infrared light
- Wave length: 850 nm
- Supply voltage Vs: DC 19.2 V to 28.8 V
- Power consumption sender: 58 mA
- Power consumption receiver: 132 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current Imax.: 100 mA
- Output load, capacitive: 100 nF
- Output load, Inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull: PNP/NPN
- Connection type: Plug, M12, 5-pin and 12-pin connectors, 1.4 m cable
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel 1.4404 and 1.4305
- Display: LED
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 13.1 ms
- Digital output: 1 (Q1)
- EtherNet/IP™ interface
- Dimensions (H x L x W): 530mm x 50mm x 50mm
- Weight: 0.859 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- 60 beams with 0.1 mm resolution and ±0.3 mm accuracy
- Cycle time of 32 µs per beam for fast response
- LED infrared light source with 850 nm wavelength
- IP69K rated protective pipes for sender and receiver
- Push-pull PNP/NPN switching output
- Robust aluminum and stainless steel housing materials
- Includes sender, receiver, fieldbus module, mounting instructions, and quick start guide
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Web guiding in industrial automation
- Precision measurement and control in manufacturing processes
- Quality control in material handling and processing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K rated housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05W-0200H52501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
