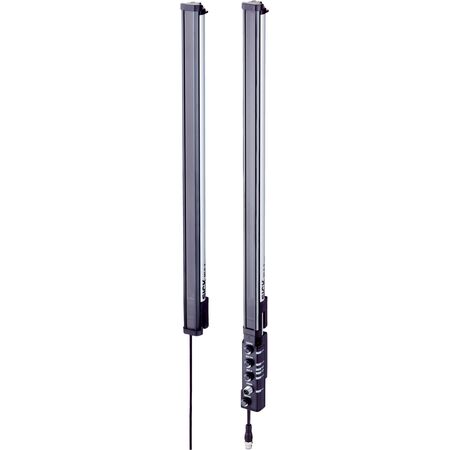

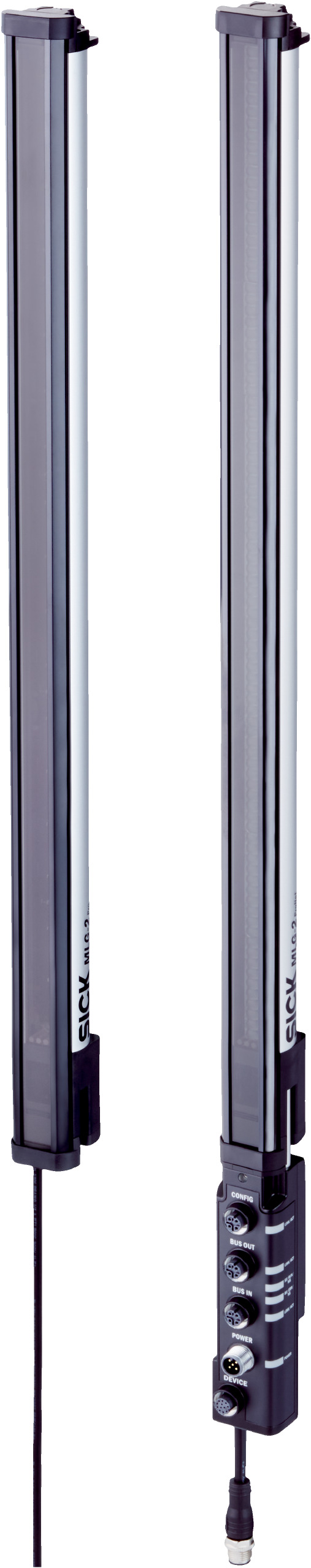

Web Guiding Sensor MLG05W-0200N12501 | High Resolution 0.1 mm | 60 Beams | IP65 & IP67 Rated | by SICK
The Web Guiding Sensor MLG05W-0200N12501 is designed for precision measurement and control in industrial automation. With a high resolution of 0.1 mm and a repeatability of 6 µm, it features 60 beams across a measuring field width of 295 mm. Ideal for web guiding applications, this robust sensor ensures reliable performance with its durable aluminum housing and IP65/IP67 protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 60
- Total measuring field width: 295 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58 mA
- Power consumption receiver: 132 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 13.1 ms
- Digital output: 1
- Dimensions (H x L x W): 379mm x 31mm x 34mm
- Weight: 0.859 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 60 beams with a total measuring field width of 295 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection ratings
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, and QuickFix brackets
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and electrical safety standards.
Applications
- Web guiding in industrial automation
- Precision measurement and control of moving materials
- Quality control in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MLG05W-0200N12501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
