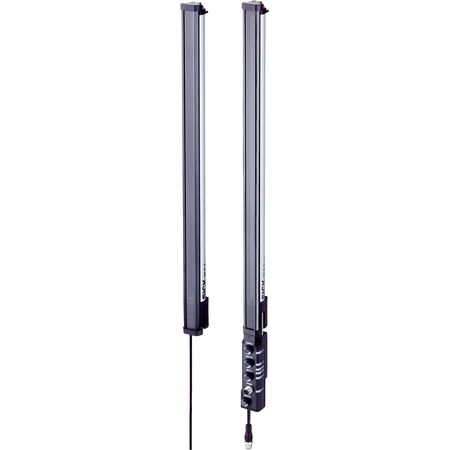

Web Guiding Sensor MLG05W-0212N12501 | 0.1 mm Resolution | 120 Beams | IP65 & IP67 Rated | by SICK
The Web Guiding Sensor MLG05W-0212N12501 is designed for precision measurement and control in industrial automation. With a high resolution of 0.1 mm and a repeatability of 6 µm, it features 120 beams covering a total measuring field width of 745 mm. Ideal for monitoring and alignment of moving materials, this robust sensor ensures reliable performance in demanding environments, thanks to its IP65 and IP67 protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Number of beams: 120
- Measuring field width: 745 mm total (295 mm connection side, 155 mm blind zone, 295 mm head side)
- Light source: LED, Infrared light (850 nm)
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption: Sender 61 mA, Receiver 144 mA, Fieldbus module 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 24.9 ms
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- Ambient light immunity: 100,000 lx
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Interface: PROFINET
- Digital outputs: 1
- Dimensions (H x L x W): 829mm x 31mm x 34mm
- Weight: 1.76 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 120 beams covering a total measuring field width of 745 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection ratings
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Web guiding in industrial automation
- Precision measurement and control in manufacturing processes
- Monitoring and alignment of moving materials
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05W-0212N12501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
