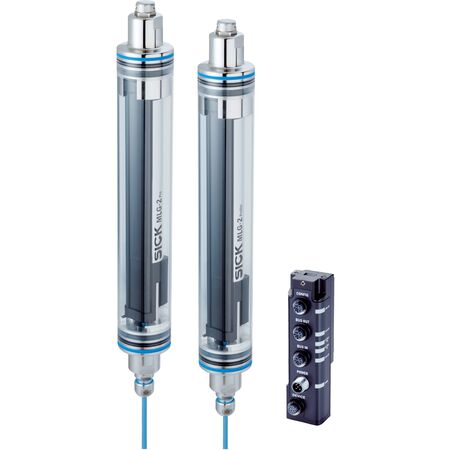

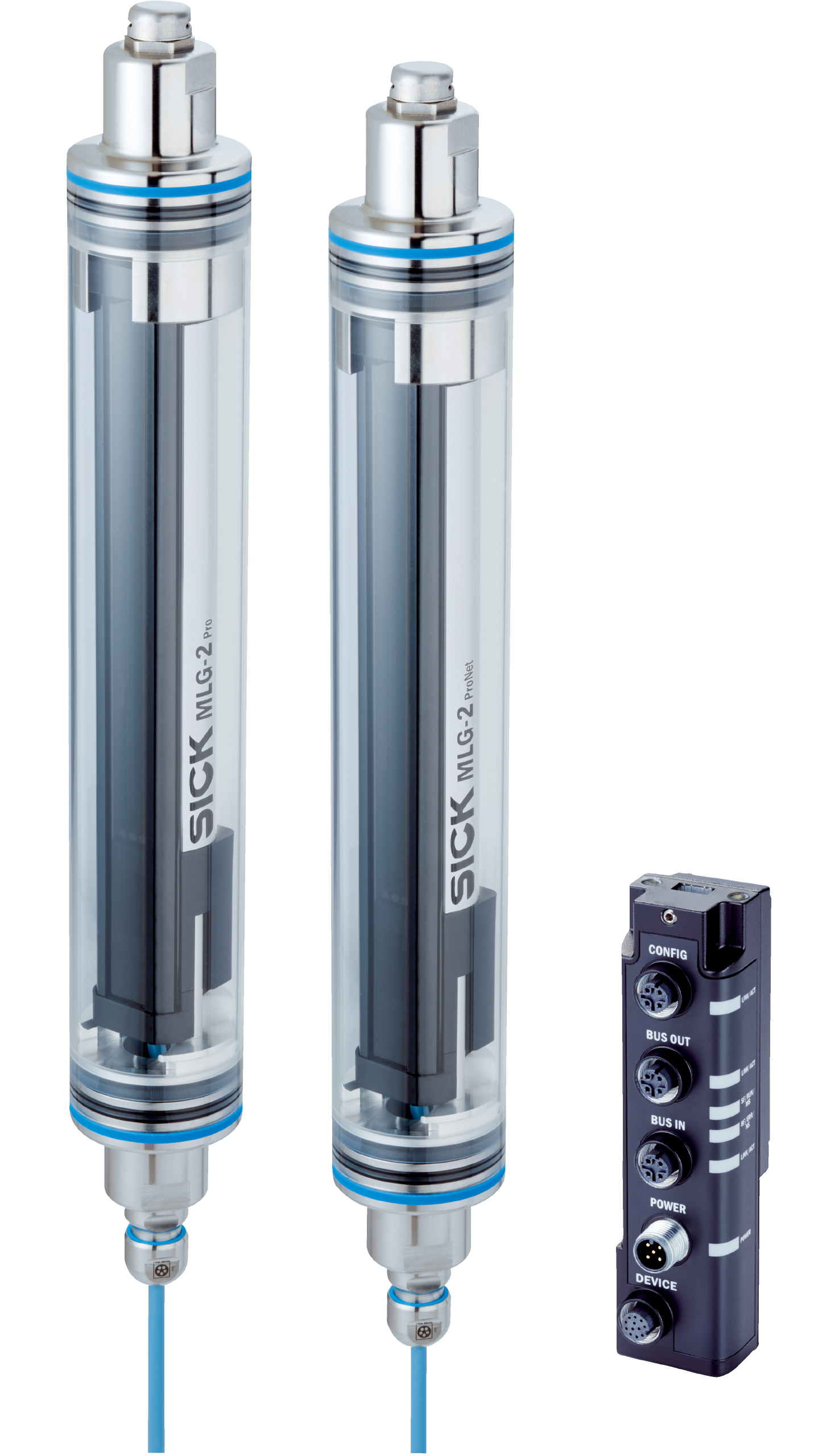

Web Guiding Sensor MLG05W-0236H52501 | 0.1 mm Resolution | 240 Beams | IP69K Rated | by SICK
The Web Guiding Sensor MLG05W-0236H52501 is designed for precision measurement in industrial automation, featuring a high resolution of 0.1 mm and a repeatability of 6 µm. With 240 beams covering a total measuring field width of 1,645 mm, this sensor ensures accurate web guiding and quality control in manufacturing processes, making it ideal for continuous material production.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 240
- Total measuring field width: 1,645 mm
- Measuring field width (connection side): 295 mm
- Blind zone (medium range): 455 mm
- Measuring field width (head side): 895 mm
- Light source: LED, Infrared light
- Wave length: 850 nm
- Supply voltage Vs: DC 19.2 V to 28.8 V
- Power consumption sender: 67 mA
- Power consumption receiver: 168 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current Imax.: 100 mA
- Output load, capacitive: 100 nF
- Output load, Inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull: PNP/NPN
- Connection type: Plug, M12, 5-pin and 12-pin connectors, 1.4 m
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Display: LED
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 48.5 ms
- Shock resistance: Continuous shocks 10 g, 16 ms; Single shocks 15 g, 11 ms
- Vibration resistance: Sinusoidal oscillation 10-150 Hz 5 g
- Ambient light immunity: 100,000 lx
- Ambient operating temperature: –20 °C to +55 °C
- Ambient temperature, storage: –40 °C to +70 °C
- Dimensions (H x L x W): 1880mm x 50mm x 50mm
- Weight: 3.6 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 240 beams covering a total measuring field width of 1,645 mm
- LED infrared light source with 850 nm wavelength
- Fast cycle time of 32 µs per beam
- IP69K rated protective housing for harsh environments
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, and mounting instructions
