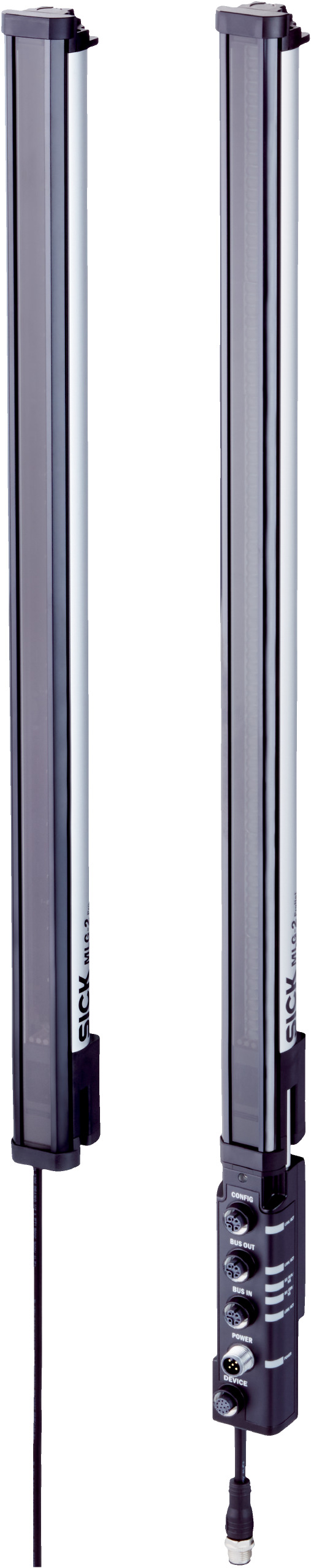

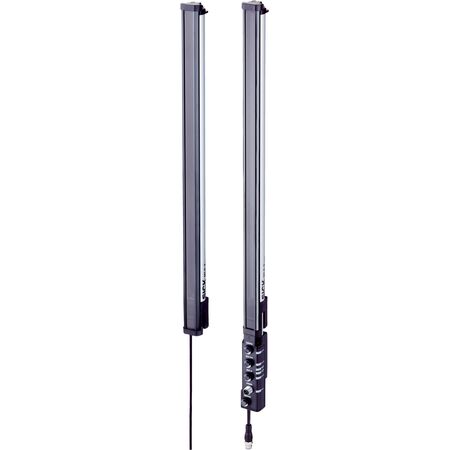

Web Guiding Sensor MLG05W-0300E12501 | 90 Beams & 0.1 mm Resolution | IP65/IP67 Rated | by SICK
The Web Guiding Sensor MLG05W-0300E12501 is designed for precision measurement in industrial automation, featuring a sender/receiver sensor principle with 90 beams and 0.1 mm resolution. With an IP65/IP67 rated enclosure, it ensures robust protection against dust and water, making it ideal for quality control and monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 90
- Total measuring field width: 445 mm
- Light source: LED, Infrared light
- Wave length: 850 nm
- Supply voltage Vs: DC 19.2 V to 28.8 V
- Power consumption sender: 59.5 mA
- Power consumption receiver: 138 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current Imax.: 100 mA
- Output load, capacitive: 100 nF
- Output load, Inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull: PNP/NPN
- Connection type: Plug, M12, 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 19 ms
- Digital output: 1 (Q1)
- EtherCAT interface: Yes
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient light immunity: 100,000 lx
- Operating temperature: –30 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 529mm x 31mm x 34mm
- Weight: 1.16 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- 90 beams with 0.1 mm resolution and ±0.3 mm accuracy
- Cycle time of 32 µs per beam for fast response
- LED infrared light source with 850 nm wavelength
- IP65 and IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, and QuickFix brackets
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Web guiding in industrial automation
- Precision measurement in manufacturing processes
- Quality control and monitoring in production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG05W-0300E12501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
