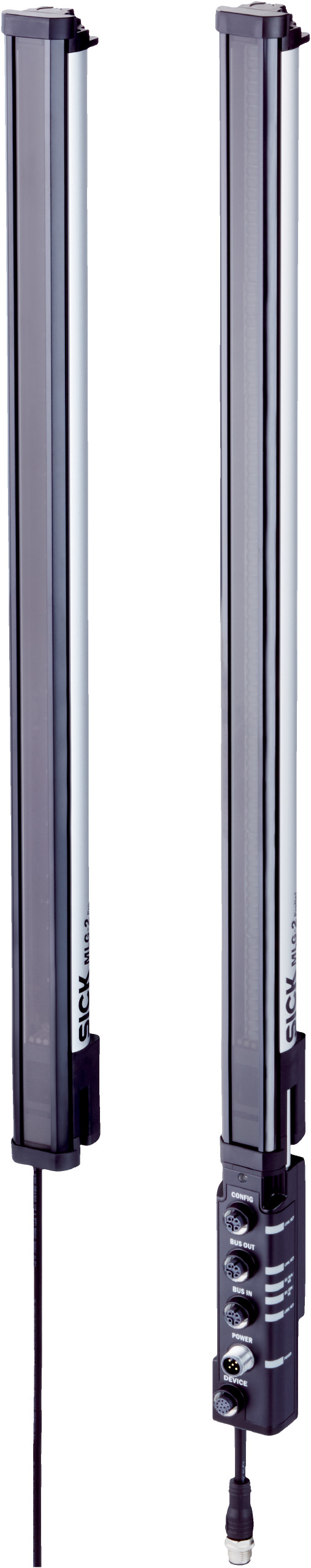

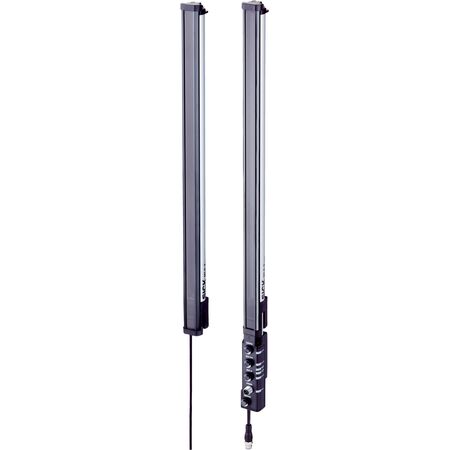

Web Guiding Sensor MLG05W-0353E12503 | 0.1 mm Resolution | 180 Beams | IP65 & IP67 Rated | by SICK
The Web Guiding Sensor MLG05W-0353E12503 is designed for high precision in industrial processes, featuring a sender/receiver sensor principle with a remarkable 0.1 mm resolution and ±0.3 mm accuracy. With 180 beams covering a total measuring field width of 1,645 mm, this sensor is perfect for automation systems requiring accurate object detection and monitoring in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Type of synchronization: Cable
- Number of beams: 180
- Total measuring field width: 1,645 mm
- Measuring field width (connection side): 445 mm
- Blind zone (medium range): 755 mm
- Measuring field width (head side): 445 mm
- Light source: LED, Infrared light
- Wave length: 850 nm
- Supply voltage Vs: DC 19.2 V to 28.8 V
- Power consumption sender: 64 mA
- Power consumption receiver: 156 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current Imax.: 100 mA
- Output load, capacitive: 100 nF
- Output load, Inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull: PNP/NPN
- Connection type: Plug, M12, 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 36.7 ms
- Digital output: 1 (Q1)
- EtherCAT® interface supported
- Dimensions (H x L x W): 1730mm x 31mm x 34mm
- Weight: 3.6 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution mode with 0.1 mm resolution and ±0.3 mm accuracy
- 180 beams covering a total measuring field width of 1,645 mm
- Fast cycle time of 32 µs per beam and repeatability of 6 µm
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection ratings
- Push-pull PNP/NPN switching output with short-circuit protection
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and electrical safety standards.
Applications
- Web guiding for high precision industrial processes
- Measurement and monitoring in manufacturing lines
- Automation systems requiring accurate object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High accuracy reduces material waste in manufacturing processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05W-0353E12503 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
