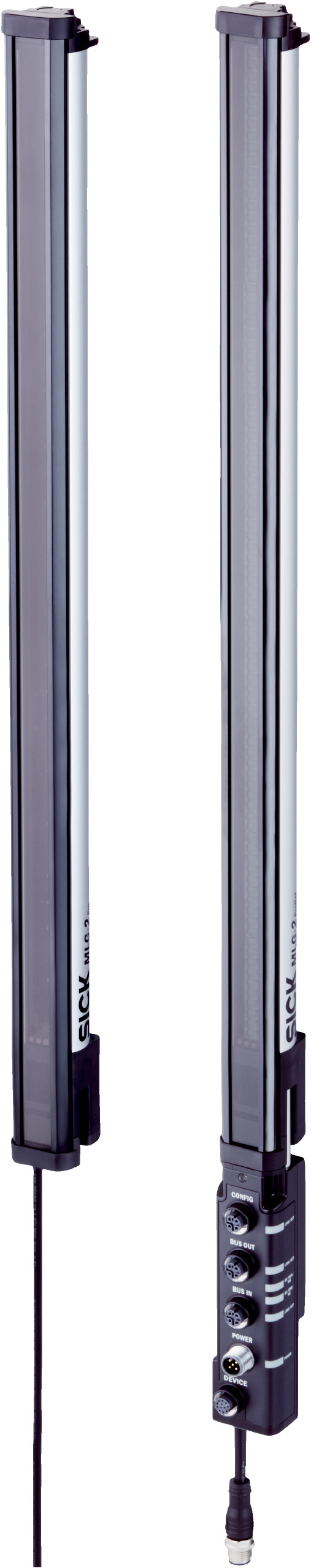

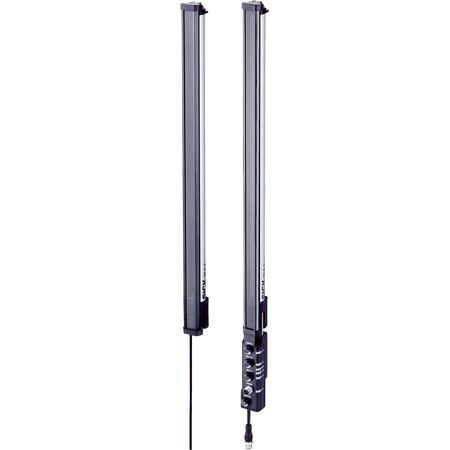

Web Guiding Sensor MLG05W-0353H12503 | High Resolution 0.1 mm | 180 Beams | IP65/IP67 Rated | by SICK
The Web Guiding Sensor MLG05W-0353H12503 is designed for high precision in industrial processes, featuring a sender/receiver sensor principle and a remarkable 0.1 mm resolution. With 180 beams covering a total measuring field width of 1,645 mm, it ensures accurate object detection in automation systems. Built with a robust aluminum housing and IP65/IP67 protection, this sensor is perfect for demanding manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Number of beams: 180
- Total measuring field width: 1,645 mm
- Measuring field width (connection side): 445 mm
- Blind zone (medium range): 755 mm
- Measuring field width (head side): 445 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 64 mA
- Power consumption receiver: 156 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 36.7 ms
- Digital output: 1 (Q1)
- EtherNet/IP™ supported
- Dimensions (H x L x W): 1730mm x 31mm x 34mm
- Weight: 3.6 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution mode with 0.1 mm resolution
- 180 beams covering a total measuring field width of 1,645 mm
- Repeatability of 6 µm and accuracy of ± 0.3 mm
- LED infrared light source with 850 nm wavelength
- Fast cycle time of 32 µs per beam
- Robust aluminum housing with IP65 and IP67 protection
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Web guiding for high precision industrial processes
- Measurement and monitoring in manufacturing lines
- Automation systems requiring accurate object detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP65/IP67 rated housing ensures long product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05W-0353H12503 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
