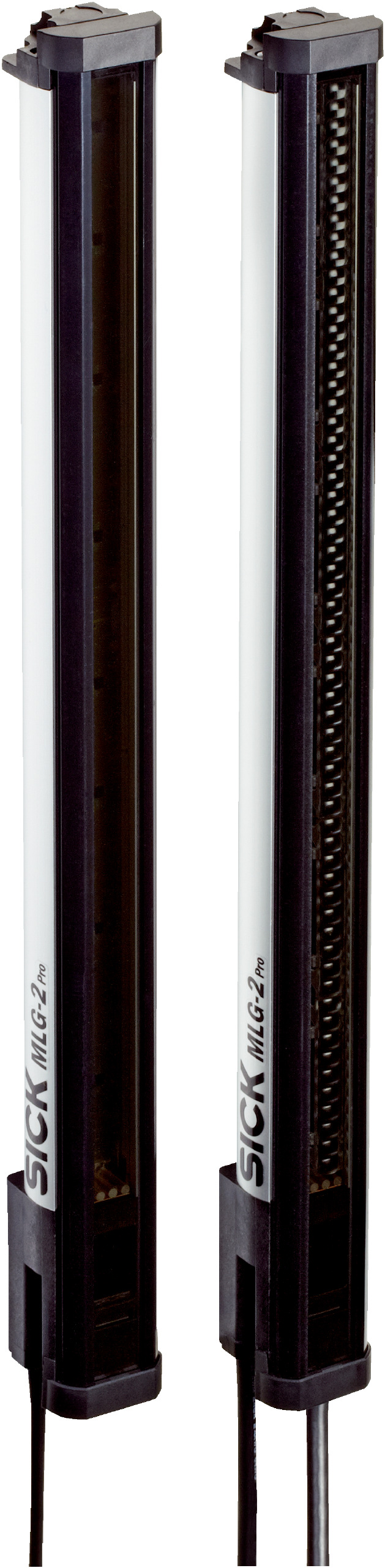

Web Guiding Sensor MLG05W-0393G12501 | High Resolution 0.1mm | IP65 & IP67 Rated | by SICK
The Web Guiding Sensor MLG05W-0393G12501 is designed for precision measurement and web guiding in industrial automation. With a high resolution of 0.1 mm and repeatability of 6 µm, it ensures accurate performance. Featuring robust aluminum housing with IP65 and IP67 protection ratings, this sensor is built to withstand harsh environments, making it ideal for quality control in continuous material processing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 2330mm x 31mm x 34mm
- Weight: 4.8 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 180 beams covering a total measuring field width of 2,245 mm
- LED infrared light source with 850 nm wavelength
- Fast cycle time of 32 µs per beam and response time of 36.7 ms
- Robust aluminum housing with IP65 and IP67 protection ratings
- Push-pull PNP/NPN switching output with short-circuit protection
- IO-Link V1.1 interface with 230.4 kbit/s data transmission rate
- Operating temperature range from -30 °C to +55 °C
- Includes sender, receiver, QuickFix brackets, and Quick Start Guide
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and connection for optimal sensor performance.
Applications
- Web guiding in industrial automation
- Precision measurement in manufacturing processes
- Quality control for continuous material processing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports precise process control to minimize material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MLG05W-0393G12501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
