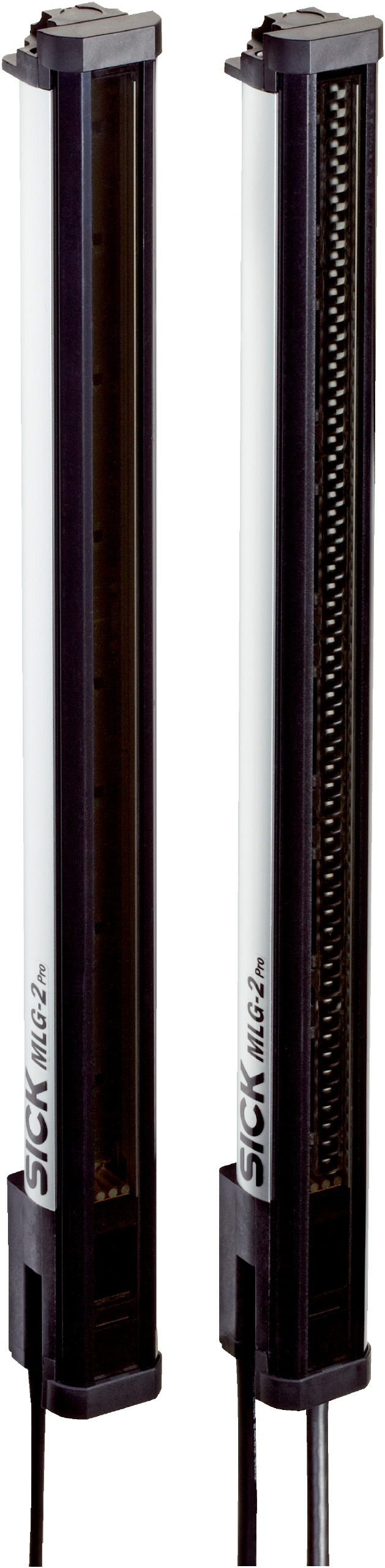

Web Guiding Sensor MLG05W-0441R12501 | High Resolution 0.1mm | IP65 & IP67 Protection | by SICK
The MLG05W-0441R12501 Web Guiding Sensor is designed for precision measurement and edge detection in industrial automation. With a high resolution of 0.1 mm and an accuracy of ±0.3 mm, it features a robust aluminum housing with IP65 and IP67 protection, making it ideal for harsh environments. This sensor is perfect for applications requiring reliable web guiding and position control, ensuring optimal performance in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 1430mm x 31mm x 34mm
- Weight: 3 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and accuracy of ±0.3 mm
- 150 beams with a total measuring field width of 1,345 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection
- Push-pull PNP/NPN switching output
- IO-Link V1.1 interface for data communication
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Operating temperature range from –30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup and calibration for optimal performance.
Applications
- Web guiding in industrial automation
- Precision measurement in manufacturing processes
- Edge detection and position control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing reduces material waste
- Energy-efficient LED infrared light source
- Long service life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05W-0441R12501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision web guiding applications.
