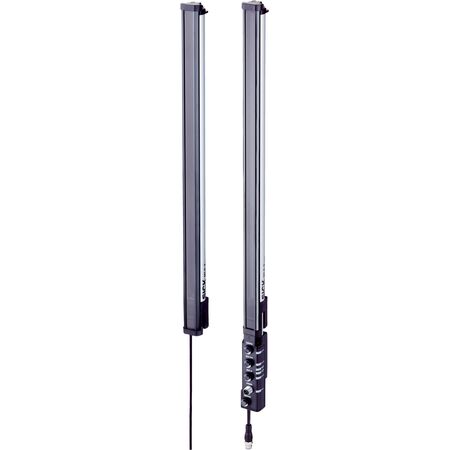

Web Guiding Sensor MLG05W-0500E12501 | 0.1 mm Resolution | 150 Beams | IP65/IP67 Rated | by SICK
The Web Guiding Sensor MLG05W-0500E12501 is designed for precision measurement and control in industrial automation. With a high resolution of 0.1 mm and a repeatability of 6 µm, it ensures accurate monitoring and alignment of moving materials. Featuring a robust aluminum housing with IP65 and IP67 protection, this sensor is built to withstand harsh environments, making it ideal for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Number of beams: 150
- Measuring field width: 745 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 62.5 mA
- Power consumption receiver: 150 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen: PMMA
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 30.8 ms
- Digital output: 1 (Q1)
- EtherCAT interface supported
- Dimensions (H x L x W): 30.6mm x 829.4mm x 34mm
- Weight: 1.76 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 150 beams covering a measuring field width of 745 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP65 and IP67 protection
- Push-pull PNP/NPN switching output
- Includes sender, receiver, fieldbus module, and QuickFix brackets
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Web guiding in industrial automation
- Precision measurement and control in manufacturing processes
- Monitoring and alignment of moving materials
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High precision reduces material waste in manufacturing processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05W-0500E12501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
