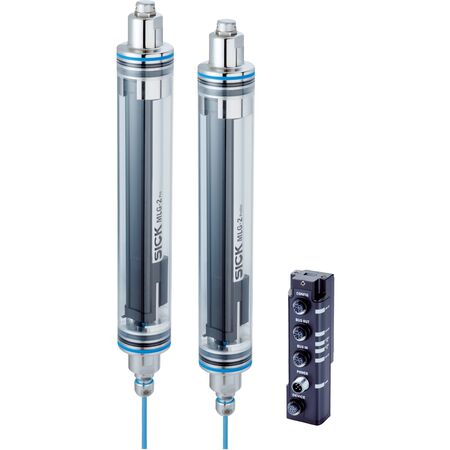

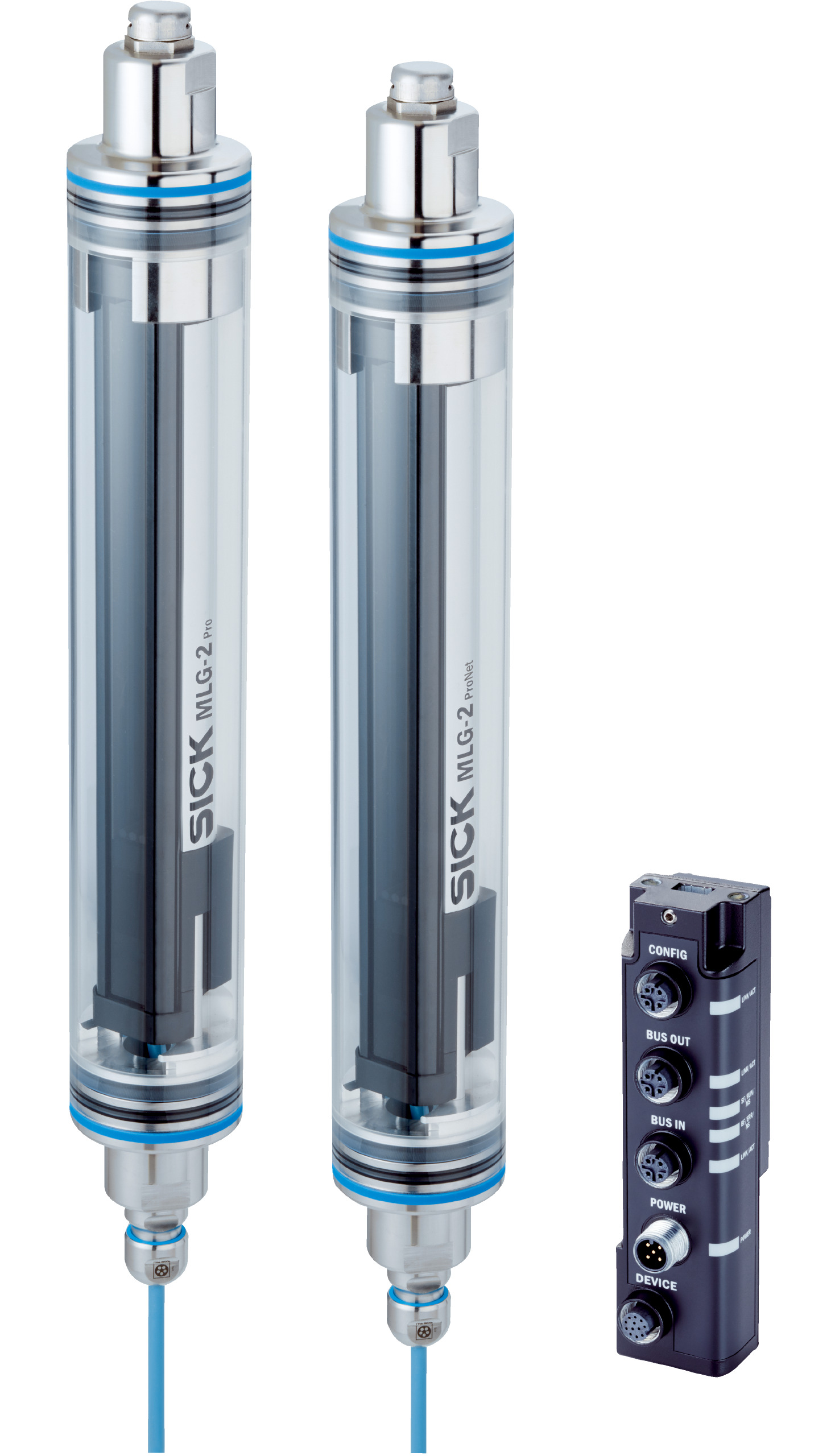

Web Guiding Sensor MLG05W-0515N52501 | 0.1 mm Resolution | 300 Beams | IP69K Rated | by SICK
The Web Guiding Sensor MLG05W-0515N52501 is designed for precision measurement in industrial automation, featuring a high resolution of 0.1 mm and a repeatability of 6 µm. With 300 beams covering a total measuring field width of 1,645 mm, this robust sensor ensures accurate web guiding and quality control in manufacturing processes, making it ideal for professionals seeking reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Web guiding
- Sensor principle: Sender/receiver
- Minimum object length: 4 mm
- Beam separation: 5 mm
- Resolution: 0.1 mm
- Cycle time: 32 µs per beam
- Repeatability: 6 µm
- Accuracy: ± 0.3 mm
- Number of beams: 300
- Total measuring field width: 1,645 mm
- Measuring field width (connection side): 745 mm
- Blind zone (medium range): 155 mm
- Measuring field width (head side): 745 mm
- Light source: LED, Infrared light
- Wavelength: 850 nm
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 70 mA
- Power consumption receiver: 180 mA
- Fieldbus module current consumption: 115 mA
- Ripple: < 5 V pp
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin and 12-pin connectors, 1.4 m cable
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Display: LED
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 3.5 m
- Minimum range: ≥ 0.2 m
- Operating range: 2.5 m
- Response time: 60.3 ms
- Interface: PROFINET
- Digital outputs: 1
- Dimensions (H x L x W): 1880mm x 50mm x 50mm
- Weight: 3.6 kg
Key Features
- Web guiding device with sender/receiver sensor principle
- High resolution of 0.1 mm and repeatability of 6 µm
- 300 beams covering a total measuring field width of 1,645 mm
- Fast cycle time of 32 µs per beam
- LED infrared light source with 850 nm wavelength
- Robust aluminum housing with IP69K protection rating
- Supports PROFINET interface for industrial communication
- Push-pull PNP/NPN switching output
- Includes sender and receiver in IP69K protective pipes and fieldbus module
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and PROFINET network setup to ensure proper operation and safety.
Applications
- Web guiding in industrial automation
- Precision measurement of moving materials
- Quality control in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP69K rated housing ensures long product life and reduces waste
- Energy-efficient LED infrared light source minimizes power consumption
- Supports precise control reducing material waste in manufacturing
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG05W-0515N52501 Web Guiding Sensor is available for immediate purchase, ideal for industrial automation and precision web guiding applications.
